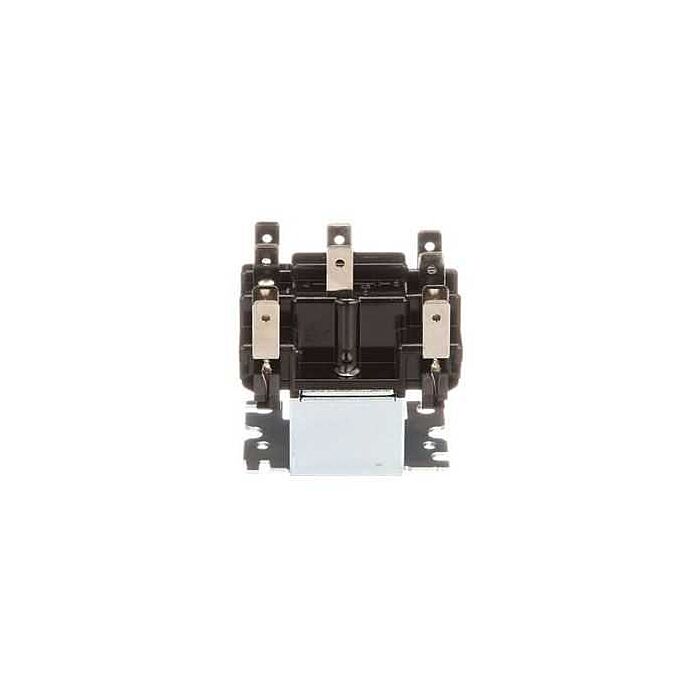

W/R TYPE 91 RELAY 24V 15A

SKU

WR90-340

UPC:

786710070662

Call for Availability

125/250/277 VAC, 24 VAC 50/60 Hz, 2PDT, 1/4" Quick-Connect Terminal, AC Operated, 2-Pole, Semi-Enclosed Relay

Product Description

More Information
Easy to Install; Suited for Use in Vending Machines, Appliances, Heating and Air Conditioning Applications and General Purpose Switching	Semi-Enclosed Relay; Type AC Operated, 2-Pole; Contact Configuration 2PDT; Contact Voltage Rating 125/250/277 Volt AC; Contact Current Rating 12 Amp Full Load/60 Amp Locked Rotor at 125 Volt AC, 6 Amp Full Load/35 Amp Locked Rotor at 240/277 Volt AC, 15 Amp at 277 Volt AC (Resistive); Coil Voltage 24 Volt AC 50/60 Hertz; Terminal Type 1/4 Inch Quick-Connect; Approval UL, CSA, CUS; Power Rating 1/2 HP at 125/250 Volt AC; Insulation Type Class B; Temperature Rating -40 to 130 Deg F; Coil Nominal Current 334 Milliamp; Coil Nominal Power Rating 9.5 Milliamp (Sealed), 22 Milliamp (Inrush); Coil Resistance 17.5 Ohm; Application Vending Machine, Appliance, Heating and Air Conditioner and General Purpose Switching

Specifications
Approval	UL, CSA
Coil Voltage	24 Volt AC 50/60 Hertz
Contact Configuration	2PDT
Contact Current Rating	12 Amp Full Load/60 Amp Locked Rotor at 125 Volt AC, 6 Amp Full Load/35 Amp Locked Rotor at 250/277 Volt AC, 15 Amp at 277 Volt AC (Resistive)
Contact Voltage Rating	125/250/277 Volt AC
Individual Item Weight	6.000 Ounce
Manufacturer	Emerson Electric Co. (White-Rodgers)
Manufacturer Name	Emerson Electric Co. (White-Rodgers)
Manufacturer Part Number	90-340
Package/Shipping Quantity	24 per Case
Series/Model	90
Terminal Type	1/4 Inch Quick-Connect
UNSPSC	39122325
UPC	786710070662

More Information
Manufacturer Catalog Document
