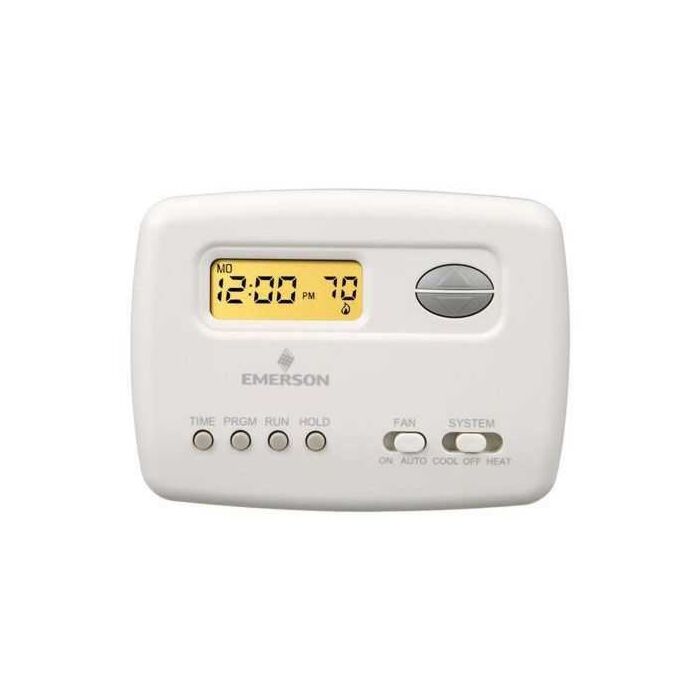

20 to 30 VAC 50/60 Hz Hardwire, 1.5 A Load Terminal, 32 to 105 Deg F, Horizontal, 5-2 Day Programmable, 1-Heat/1-Cool 1-Stage/Heat Pump, Digital, Thermostat
Product Description
More Information
Fossil Fuel or Electric Compatible; Selectable Celsius or Fahrenheit Temperature Display; Electronic Accuracy
Thermostat; Type 5-2 Day Programmable, 1-Heat/1-Cool 1-Stage/Heat Pump, Digital; Cover Type Horizontal; Voltage Rating Millivolt to 30 Volt AC (Battery), 20 to 30 Volt AC 50/60 Hertz (Hardwire); Current Rating 1.5 Amp (Load Terminal); Temperature Rating 32 to 105 Deg F; Size 5-1/8 Inch Width x 1-1/8 Inch Depth x 3-13/16 Inch Height; Display Size 1.2 Square Inch Backlit; Terminal Designation RC, RH, W, Y, O, B, G; Setpoint Temperature Range 45 to 99 Deg F; Display Temperature Rating 32 to 99 Deg F; Humidity Rating 90 Percent (Non-Condensing); Millivolt System; Applicable Standard NEC Class II
Specifications
Specifications
Approval
NEC Class 2
Cover Type
Rectangular Horizontal
Current Rating
1.5 Amp
Manufacturer
Emerson Electric Co. (White-Rodgers)
Manufacturer Name
Emerson Electric Co. (White-Rodgers)
Manufacturer Part Number
1F78-151
Package/Shipping Quantity
6 per Case
Series/Model
70
Size
5-1/8 Inch Width x 1-1/8 Inch Depth x 3-13/16 Inch Height
Temperature Rating
32 to 105 Deg F
UNSPSC
41112209
UPC
786710100673
Voltage Rating
Millivolt to 30 Volt AC (Battery), 20 to 30 Volt AC 50/60 Hertz (Hardwire)
