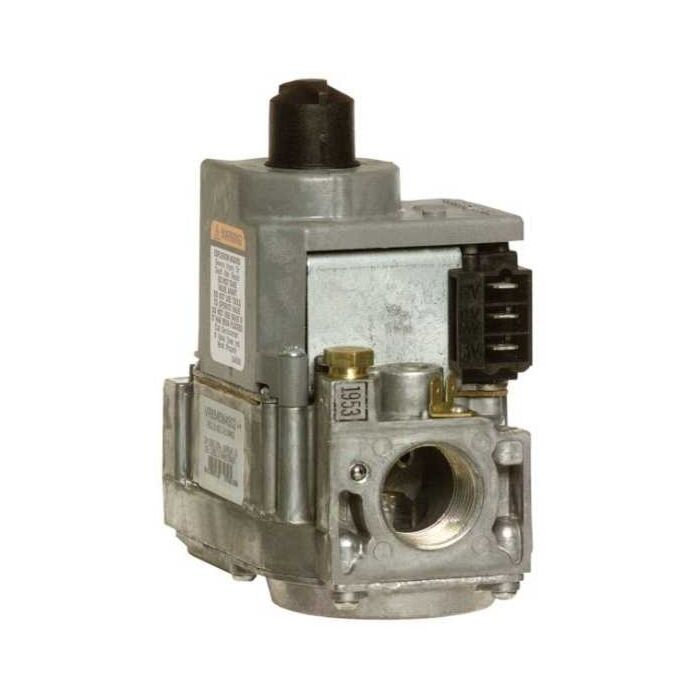

3/4" NPT x 3/4" NPT, 1/2 PSI, 30000 to 4150000 BTU/Hr, Vertical Mount, Intermittent/Direct Ignition Pilot Operated, 1-Stage, Straight-Through, Universal, Electronic Ignition Gas Control Valve
Product Description
More Information
Compact Size; All Adjustments and Wiring Connections Accessible from Top of Control; 4 Inch Swing Radius Allows Easy Rotation Into Position Inside the Tightest Furnace Vestibules; Clearly Marked, Keyed Terminal Block Allows Quick Attachment of Wires and IP/DSI/HSI Jumper; Internal Inlet Screen Blocks Contaminants in Gas Line from Entering Valve
Electronic Ignition Gas Control Valve; Type Standard Opening, Intermittent/Direct Ignition Pilot, 1-Stage, Straight-Through, Universal; Port Connection 3/4 Inch Threaded x 3/4 Inch Threaded; Input Supply Rating 24 Volt AC 50/60 Hertz; Temperature Rating -40 to 175 Deg F; Pressure Rating 1/2 PSI; Mounting Details 0 to 90 Degree/Vertical/Any Direction; Media Handled Natural/Liquid Propane Gas; Inclusions/Features Manual Valve, (2) Automatic Operator, Pressure Regulator, Pilot Adjustment, Pilot Plug and Ignition Adapter, (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Natural to LP Conversion Kit; Application Gas-Fired Appliance; Applicable Standard UL, CSA; Overall Dimension 4-1/16 Inch Width x 2-11/16 Inch Depth x 5-3/8 Inch Height; Pressure Regulator Setting 3.5 Inch WC; Pressure Tapping Size 1/8 Inch Threaded with Plug; Air Flow Rating 20 to 200 CFH/30 to 415 CFH; Electrical Connection Type 1/4 Inch Quick Connect Male Terminal; Nominal Capacity 30000 to 4150000 BTU/Hour
Specifications
Specifications
Input Supply Rating
24 Volt AC at 50/60 Hertz
Manufacturer
Honeywell International Inc. (Resideo Technologies Inc.)
Manufacturer Name
Honeywell International Inc. (Resideo Technologies Inc.)
