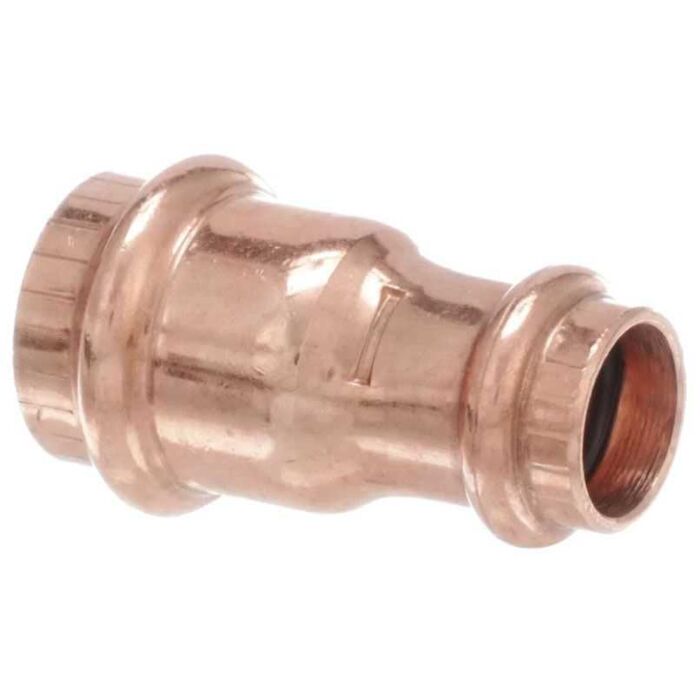

3/4" x 1/2", ProPress x ProPress, 600 PSI, UNS C12200 Copper Alloy, Smart Connect, Reducer with EPDM Sealing Element
Product Description
More Information
Connections Can be Made Wet or Dry for Quick Repairs on Existing System; Make Secure Press Connections in Seven Seconds or Less; Flameless Press Technology Eliminates the Need for Burn Permits or Fire Watches; Approved by Viega for Nearly 1000 Different Applications; Viega Smart Connect® Technology Helps Identify Unpressed Connections
Reducer Fitting; Type Smart Connect; Size A 3/4 Inch; Size B 1/2 Inch; End Connection ProPress x ProPress; Material UNS C12200 Copper Alloy; Pressure Rating 300 PSI, 600 PSI (Test); Temperature Rating 0 to 250 Deg F; Application Hot and Cold Potable Water, Rainwater/Gray Water, Fire Sprinkler, Chilled Water, Hydronic Heating, Low Pressure Steam, Residential Steam, Ethanol, Compressed Air, Non-Medical Gas, Vacuum; Applicable Standard UL/ANSI 213, NSF/ANSI 61/372, IAPMO PS 117, FM Class 1920, ICC-ES IC1002, ABS, ASME B16.51/B31.1/B31.3/B31.9, NFPA 13/13D/13R, ASTM F3226; Includes EPDM Sealing Element; Used On ASTM B75/B88 Tubing
Viega ProPress is the trusted copper press joining solution. Since its introduction in 1999, it has reduced overall job costs, saved time and increased reliability on jobsites across the globe. Viega is the only company with Smart Connect technology, which provides installers added confidence in their ability to ensure secure connections. With system matched tools, rings and jaws, press connections are made in seconds, making Viega ProPress suitable for virtually any type of project.
