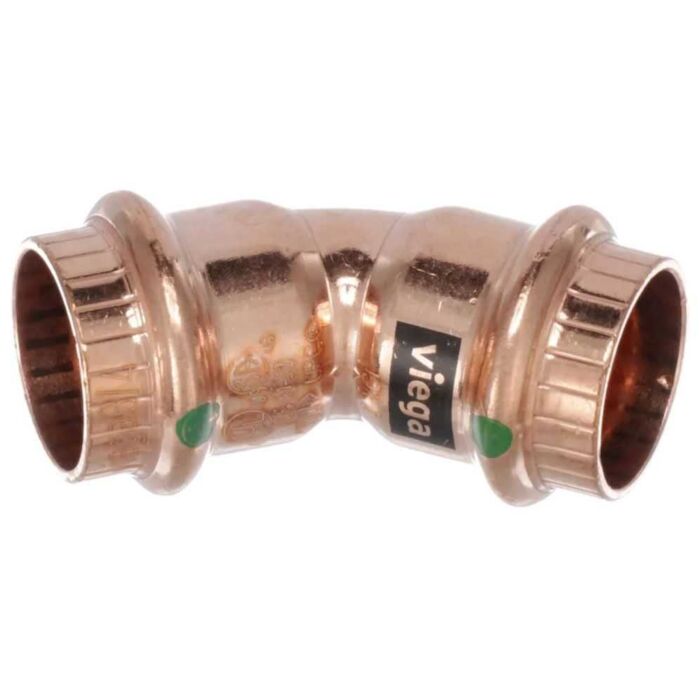

Copper Elbow 45 C x C 1/2 PROPRESS VIEGA
custom warehouse| Warehouse | QTY |
|---|
| Atlas | 0 |
| PWS | 0 |
| Total | 0 |
1/2" x 1/2", ProPress x ProPress, 300 PSI, UNS C12200 Copper, Straight, 45D Elbow
Product Description
More Information | Smart Connect Technology | Elbow Fitting; Type Straight; Angle 45 Degree; Size A 1/2 Inch; Size B 1/2 Inch; End Connection ProPress x ProPress; Material UNS C12200 Copper Alloy; Pressure Rating 300 PSI (Operating), 600 PSI (Test); Temperature Rating 0 to 250 Deg F; Application Hot and Cold Potable Water, Rainwater/Gray Water, Fire Sprinkler, Chilled Water, Hydronic Heating, Low Pressure Steam, Residential Steam, Ethanol, Compressed Air, Non-Medical Gas, Vacuum; Applicable Standard ASTM F3226, ASME B16.51/B31.1/B31.3/B31.9, ABS, NFPA 13/13D/13R, NSF/ANSI 61/372, FM Class 1920, ICC-ES IC1002, IAPMO PS 117, UL/ANSI 213; Includes EPDM Sealing Element; Used On ASTM B88/B75 Tubing | ProPress® |
Specifications
Specifications | Angle | 45 Degree |
|---|
| Elbow Type | 45° Elbow |
|---|
| End Connection | ProPress x ProPress |
|---|
| Individual Item Weight | 0.094 Pound |
|---|
| Manufacturer | Viega Holding GmbH & Co. KG (Viega LLC) |
|---|
| Manufacturer Name | Viega Holding GmbH & Co. KG (Viega LLC) |
|---|
| Manufacturer Part Number | 77607 |
|---|
| Material | Copper |
|---|
| Material Specification | ASTM B75/B88 |
|---|
| Package/Shipping Quantity | 10 per Pack |
|---|
| Pressure Rating | 300 PSI, 600 PSI (Test) |
|---|
| Series/Model | 2926 |
|---|
| Size (Inches) | 1/2" |
|---|
| Size A | 1/2 Inch |
|---|
| Size B | 1/2 Inch |
|---|
| Temperature Rating | 0 to 250 Deg F |
|---|
| Type | Straight |
|---|
| UNSPSC | 40183101 |
|---|
| UPC | 691514776071 |
|---|
