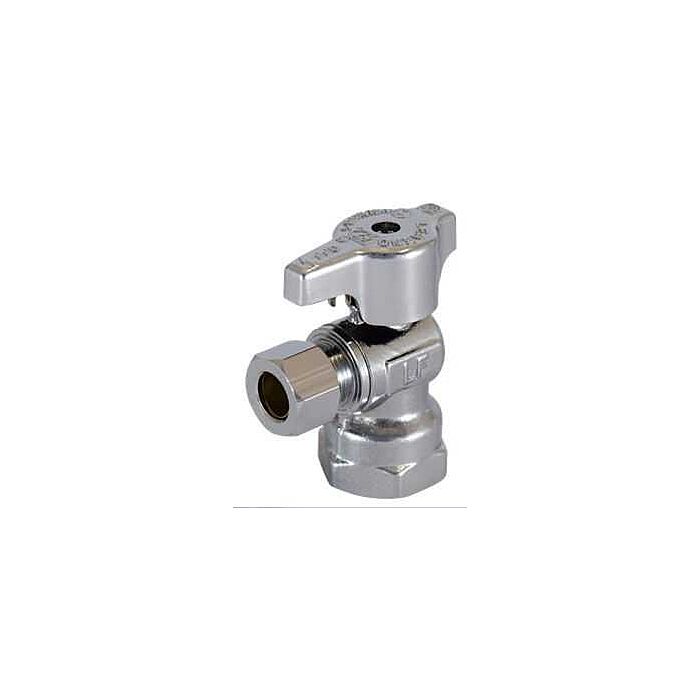

3/8" x 3/8", FPT x Compression, 125 PSI CWP Non-Shock, Lead-Free, Forged Brass, 1/4 Turn, Angle, Ball, Supply Stop Valve
Product Description
More Information
Quarter Turn, Self-Cleaning Ball Valve Design Resists Mineral and Scale Buildup, Assuring Positive Shutoff and Re-Opening; The Ball Seat Operation and Dual O-Ring Stem Seal Features, Out Perform Traditional Multi-Turn Stop Designs; Compact, Chrome Plated Forged Brass Bodies are Durable and Decorative; An Ideal Upgrade Replacement for Worn, Leaking Stops that Wont Close Completely; Lead-Free
Supply Stop Valve; Type Angle; Actuation Type 1/4 Turn; Nominal Size 3/8 Inch x 3/8 Inch; End Connection Female Threaded x OD Compression; End to End Distance 1.22 Inch; Body Material UNS Alloy C46400 Cast Brass; Stem Material UNS Alloy C46400 Cast Brass; Seat Material (2) EPDM Rubber; Seal Material (2) NBR Buna-N Rubber Stem O-Ring; Handle Material ASTM B86 Chrome Plated Zinc; Temperature Rating 120 Deg F; Pressure Rating 125 PSI CWP; Inclusions/Features Chrome Plated Brass Compression Nut, Brass Compression Ferrule/Ball, Plated Carbon Steel Screw; Application Potable Water; Applicable Standard NSF/ANSI 61/372, ANSI/ASME B1.20.1/B16.18; Lead-Free
