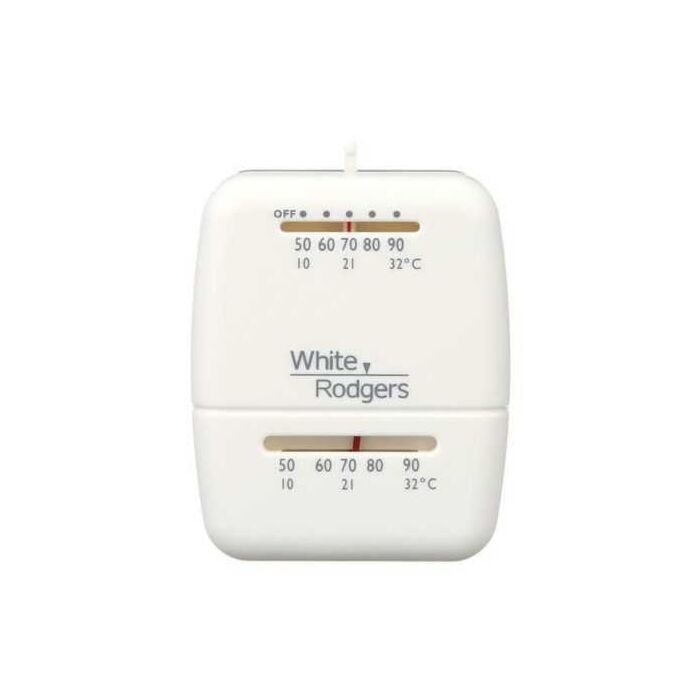

30 VAC 50/60 Hz, 30 VDC, 0.15 to 1.2 A Heating, 50 to 90 Deg F, Snap Action, Vertical, 1-Heat/Cool, Mechanical, Thermostat
Product Description
More Information
Reliable Performance in an Attractive Design; Rugged Snap Action Contacts; Adjustable Heat Anticipator; Built-In Bi-Metal Thermometer; Heat/Cool Model Includes Switching Subbase; Heat/Cool Model Compatible with Electric Heat Systems; Mercury-Free
Thermostat; Type 1-Heat/Cool, Mechanical; Cover Type Vertical; Voltage Rating 30 Volt AC 50/60 Hertz/30 Volt DC; Current Rating 0.15 to 1.2 Amp (Heating); Switch Type Snap-Action; Temperature Rating 50 to 90 Deg F; Size 2.88 Inch Width x 1.5 Inch Depth x 3.75 Inch Height; Terminal Designation R, W; Includes Switching Sub-Base, Bi-Metal Thermometer, Adjustable Heat Anticipator; Application Gas/Oil/Electric, Electric Heat Strip, Millivolt System
Specifications
Specifications
Cover Type
Vertical
Current Rating
0.15 to 1.2 Amp (Heating)
Manufacturer
Emerson Electric Co. (White-Rodgers)
Manufacturer Name
Emerson Electric Co. (White-Rodgers)
Manufacturer Part Number
1C20-101
Series/Model
1C20
Size
2-7/8 Inch Width x 1-1/2 Inch Depth x 3-3/4 Inch Height
