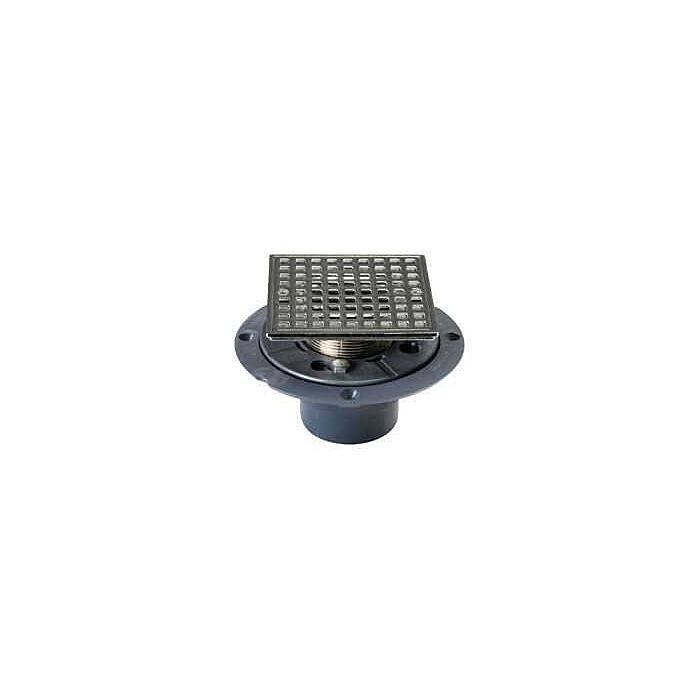

2", Hub, 3-1/2 to 4-3/4" H, 4-1/8" Square Chrome Plated Zamac Strainer, 500 Lb Strain Load Rated, Schedule 40, Gray PVC Base Adapter, Shower Pan Drain
Product Description
More Information
Shower Pan Drain Shall be Used where Necessary in Drainage System; Drain shall have a Beveled Flashing Base Adapter with Peripheral Mounting Holes for Securing to Subfloor; Invertible Clamping Collar shall Fasten to Drain Body with Four Screws that Thread in to Brass Inserts; Lifetime Limited Warranty; Made in USA
Shower Pan Drain; Type Square; Drain Size 2 Inch; Outlet Type Hub/Solvent Weld; Schedule 40; Strainer Material 304 Stainless Steel; Drain Material PVC; Inclusions/Features Head, Strainer; Applicable Standard ASME A112.18.2-2005/CSA B125.2-05; Overall Size 4-1/8 Inch x 3-1/2 to 4-3/4 Inch; Finish Chrome Plated; Head Adapter Gray ABS; Clamping Collar Reinforced Polypropylene; Collar Bolt Zinc-Plated Hex Cap Screw; Base Adapter Gray PVC/Black ABS; Strainer Load Rating 1000 pound; Strainer Free Area 4.5 Square Inch (Round), 7.6 Square Inch (Square); Strainer Flow Capacity
