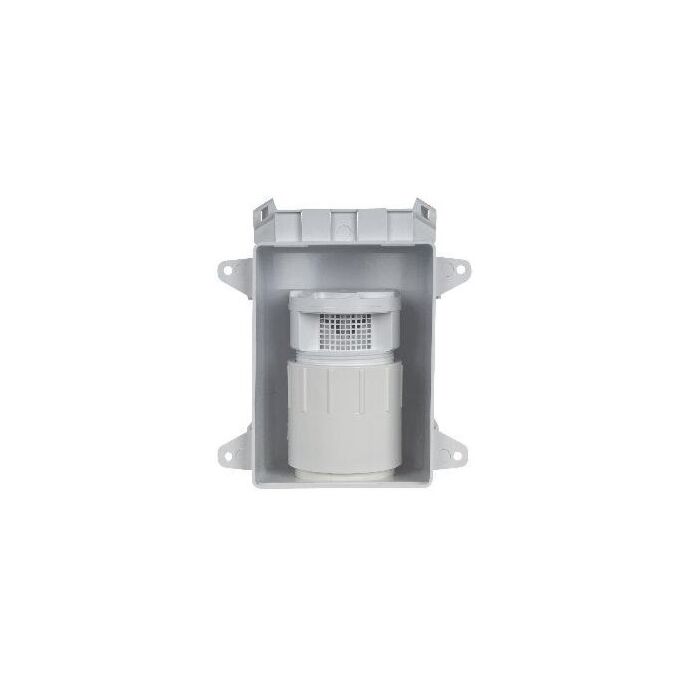

2", PVC NPT x Hub Adapter, Schedule 40, 13 PSIG, White, ABS-DWV, Air Admittance Valve with 1-3/4" Adapter/Access Box Kit
Product Description
More Information
696 Series Turbovent Air Admittance Valves with Access Box Shall be Installed as Vent Terminal for Secondary Venting within the Plumbing System; Valve Shall Connect to DWV System Via Schedule 40 Adapter Which Complies with ASTM D2665 (PVC) or D2661 (ABS) and be Made Accessible after Finish Wall is Installed; Valve Shall Incorporate an Actuating Device Which Spins upon Activation to Keep the Elastomeric Sealing Surface Clean and Free of Debris; During Drainage, Actuating Device Shall Raise a Designed Distance Under Negative Line Pressure to Allow Optimal Air Flow into the DWV System; Lifetime Limited Warranty; Made in USA
Air Admittance Valve; Item Air Admittance Valve; Pipe Connection 2 Inch Threaded x Hub Adapter; Box Size 4 Inch Width x 5-1/2 Inch Height; Face Plate Size 5-3/4 Inch Width x 7-1/4 Inch Height; Material PVC; Color/Finish White; Box Volume 4 Inch Width x 5-1/2 Inch Height; Valve Supplied Yes; Valve Details 2 Inch NPT; Inclusions/Features DWV Adapter; Applicable Standard IAPMO, IPC, ASTM D2661/D2665/F409; Open Grate Area 1.134 Square Inch; Adapter Size 1-3/4 Inch; Pipe Access Hole Size 2-3/8 Inch; Schedule 40; Overall Valve Size 2-11/16 Inch Width x 2-1/8 Inch Height
