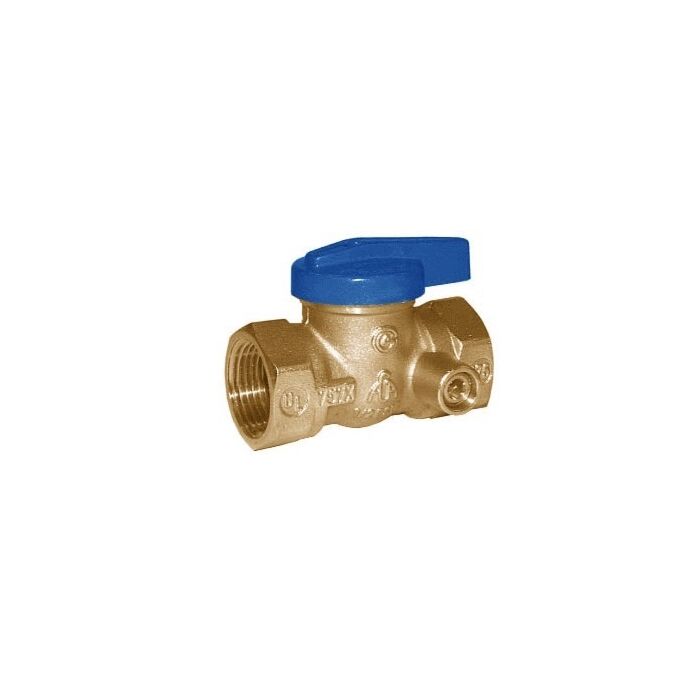

1/2" x 1/2", FPT x FPT, 175 PSI CWP, Chrome Plated Forged Brass Ball, Forged Brass Body, 1/4 Turn Handle, 1-Piece, Gas Ball Valve
Product Description
More Information
Patented 1-Piece Forged Brass Body Eliminates the Possibility of Seam Leaks Common to 2-Piece Body Designs; Chrome Plated Ball and Soft Seats Resist Contamination Build-Up and Offer a Positive Seal in Low or Moderate-Pressure Gas Application; 1/4 Turn Ball-Type, Forged Brass Design is More Compact and Superior to Traditional Cast Bronze or Cast Iron Gas Cock; the 175 PSI Pressure Rating Permits High Pressure Air Tests without the Grease-Seal Blowout Common to Plug-Type Gas Cocks
Gas Ball Valve; Type 1-Piece; Actuation Type 1/4 Turn Handle; Nominal Size 1/2 Inch x 1/2 Inch; End Connection Female Threaded x Female Threaded; End to End Distance 2.36 Inch; Ball Material ASTM B124 UNS C37700 Chrome Plated Forged Brass; Body Material ASTM B124 UNS C37700 Forged Brass; Stem Material ASTM B124 UNS C37700 Forged Brass; Seat Material Type 7PB496 ASTM D2000 Nitrile Rubber; Handle Material Commercial Grade/Die-Cast Coated Aluminum; Pressure Rating 175 PSI CWP; Inclusions/Features Synthetic Fiber Thrust Washer, Forged Brass Stem Retainer Brushing, Stem O-Ring Nitrile (NBR) Rubber, Phosphor Bronze Wire Stem Retainer Clip, Zinc Plated Steel Handle Screw; Application Residential, Commercial, Low/Moderate Pressure Gas; Applicable Standard UL 125/842/1477, ANSI/ASME B1.20, ASME B16.44, ANSI Z21.15
