A Full-Flow Waterway Reduces Pressure Drop; Rising Stem Provides a Quick, External Visual Reference to the Internal Disc-Wedge Position; Heavy Duty Inserted and Extended Bonnet is Ideal for Insulated or Remote Piping Installations, Placing the Handwheel Closer to the Operator; Solid, Fully-Guided Disc-Wedge Rises Completely Out of the Flow Path and has a Broad Sealing Area that Resists Mineral Build-Up; Integral Seats are Precision-Ground to Match Each Disc-Wedge, Enhancing the Drip-Tight Seal; the Gland Follower Stem Seal Design Lasts Longer than Traditional Packing-Nut Designs, by Isolating the Packing Nut’s Rotational Movement from the Packing Compression Seal

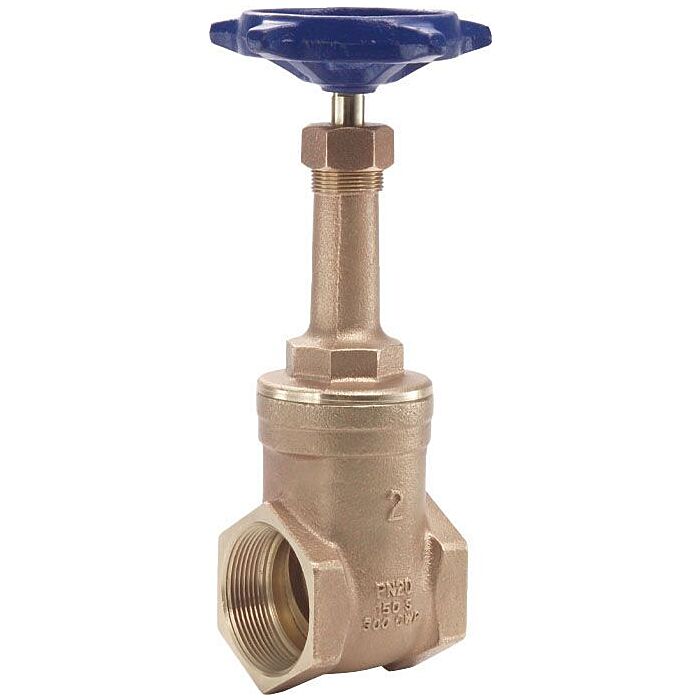

Gate Valve; Type Wedge Disc; Actuation Type Handwheel; Nominal Size 2 Inch x 2 Inch; Stem Design Rising; End Connection Female Threaded x Female Threaded; End to End Distance 2.93 Inch; Body Material ASTM B62 UNS C83600 Cast Bronze Alloy; Stem Material AS 352 UNS C35330 DZR Machining Brass Alloy; Wedge Material ASTM B62 UNS C83600 Cast Bronze Alloy; Bonnet Material ASTM B62 UNS C83600 Cast Bronze Alloy; Handle Material ASTM A126 Class B Cast Iron; Pressure Rating 300 PSI CWP, 150 PSI SWP; Inclusions/Features Brass Gland Follower, Bronze Packing Nut, Aluminum Identification Disc, Integral Seat; Application Commercial, Industrial Water or Steam; Applicable Standard ANSI/ASME B1.20.1, MSS SP-80, ISO 9002; Flow Rate 197 GPM
