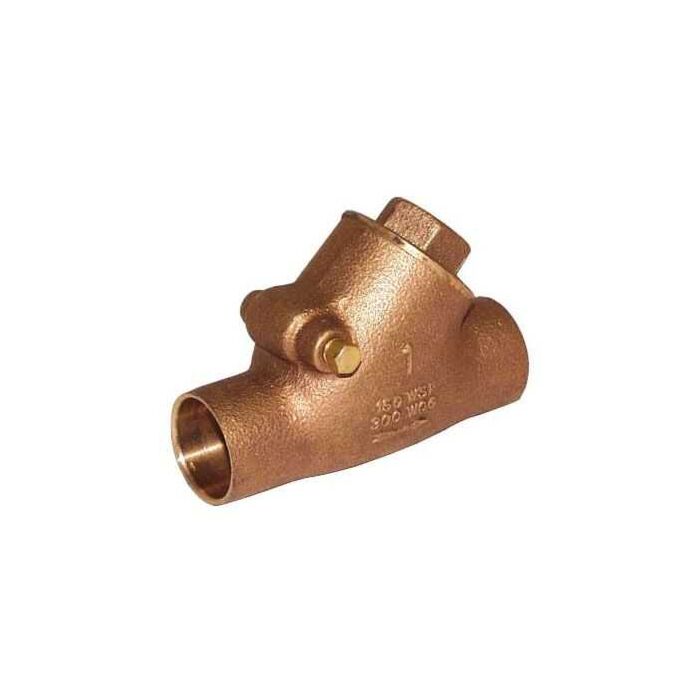

1-1/2" x 1-1/2", Soldered x Soldered, 300 PSI CWP, 150 PSI WSP, Lead-Free, Cast Bronze Body, Vertical/Horizontal, Full Pattern, Heavy Duty, Y-Pattern, Check Valve
Product Description
More Information
Heavy Duty, Full Pattern Bronze Construction Resists Pipeline Stresses and Distortion; Y-Pattern Body Permits Exceptional Flow Rates, Typically Required in Commercial Application; Large, Integral Seat and Disc are Tilted Inward at 45 Degrees, Promoting Linear Flow and Minimizing Pressure Drop; Uni-Directional Flow: Can be Installed in the Horizontal (Assembly Cap Upright) or Vertical (Upward Flow Only) Positions; Forged Brass Hinge Pin Assures Smooth, Non-Binding Disc Operation; Lead-Free; Made in USA
Check Valve; Type Swing, Y-Pattern; Nominal Size 1-1/2 Inch; End Connection Female Soldered x Female Soldered; End to End Distance 5.39 Inch; Body Material JIS H5120 CAC902 Cast Bronze; Disc Material JIS H5120 CAC902 Cast Bronze; Cap Material JIS H5120 CAC902 Cast Bronze; Pressure Rating 150 PSI SWP, 300 PSI CWP; Application Potable Water, Commercial; Applicable Standard ANSI/ASME B16.18, MSS SP-80, ISO 9002; Lead-Free
