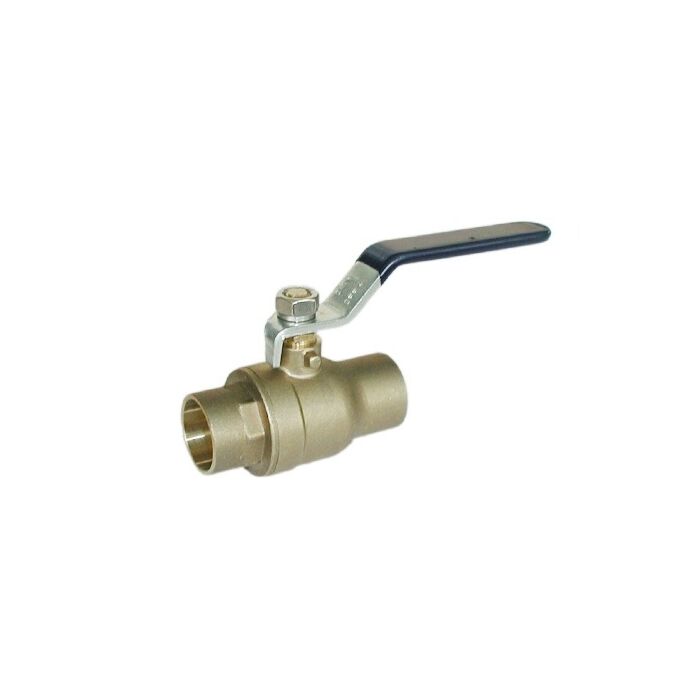

Ball Valve; Type 1-Piece; Actuation Type Lever Handle; Nominal Size 1-1/2 Inch; End Connection Female Soldered x Female Soldered; End to End Distance 5 Inch; Ball Material ASTM B124/124M UNS C37700 Chrome Plated Forged Brass; Body Material ASTM B124/124M UNS C37700 Forged Brass; Stem Material ASTM B124/124M UNS C37700 Chrome Plated Forged Brass; Seat Material Dyneon TFM PTFE; Seal Material DuPont Viton Fluorocarbon O-Ring; Handle Material ASTM A510 UNS G10060 Dacromet Coated Steel; Port Type Full; Pressure Rating 150 PSI SWP, 600 PSI CWP; Inclusions/Features Maintenance-Free Design, Bottom Loaded Blow-Out Proof Stem, Dyneon TFM PTFE Thrust Washer, Forged Brass End Adapter, Tamper Evident Dacromet Coated Steel Handle Nut, TFM PTFE Anti-Friction Washer, Expansion Slot; Application Residential, Commercial and Industrial, Gas Piping System, Steam, Natural, Manufactured, Mixed, Liquid Petroleum and LP Gas Air Mixture; Applicable Standard ANSI/ASME B16.18, ANSI/ASME B16.33, ANSI Z21.15, UL 44R8/757X, CSA (Canada and US), FM, MSS-SP-110, ISO 9002; Packaging Quantity 4 per Carton
Specifications
Specifications
Actuation Type
Lever Handle
Ball Material
ASTM B124/124M UNS C37700 Chrome Plated Forged Brass
Body Material
ASTM B124/124M UNS C37700 Forged Brass
Connection Method
Sweat
End Connection
Female Soldered x Female Soldered
End To End Distance
5 Inch
Handle Material
ASTM A510 UNS G10060 Dacromet Coated Steel
Handle Style
Lever
Individual Item Weight
2.150 Pound
Lead Free
Yes
Manufacturer
Legend Valve
Manufacturer Name
Legend Valve
Manufacturer Part Number
101-047
Nominal Size
1-1/2 Inch
Package/Shipping Height
4.500 Inch
Package/Shipping Length
10.700 Inch
Package/Shipping Width
5.700 Inch
Port Type
Full
Pressure Rating
150 PSI (SWP), 600 PSI (CWP)
Seal Material
Dupont Viton Fluorocarbon O-Ring
Seat Material
Dyneon TFM PTFE
Series/Model
S-1001
Size (Inches)
1-1/2"
Stem Material
ASTM B124/124M UNS C37700 Chrome Plated Forged Brass
