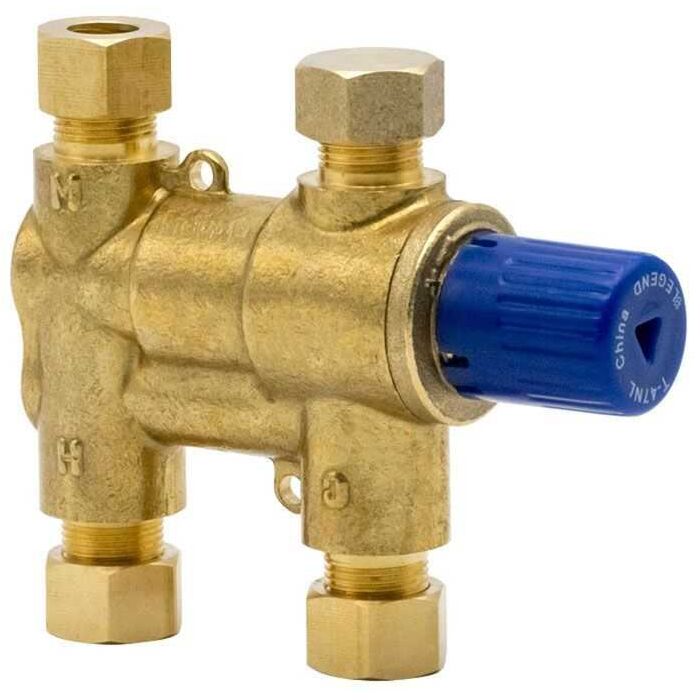

Thermostatic Mixing Valve
3/8" x 3/8" x 3/8" x 3/8", Compression x Compression x Compression x Compression, 150 PSI, 0.25 to 3.2 GPM, Lead-Free, Forged Brass, Adjustable, 4-Port, Under Sink, Thermostatic Mixing Valve
Product Description
Specifications
| Base To Inlet Dimension | 1.91 Inch |
|---|---|
| Body Material | C46500 Forged Brass |
| California Proposition 65 Warning | Yes |
| Disc Material | C46500 Forged Brass Stem Spring Base |
| End Connection | Compression x Compression x Compression x Compression |
| End To End Distance | 3.18 Inch |
| Flow Rate | 0.25 to 3.2 GPM |
| Individual Item Weight | 1.040 Pound |
| Inlet To Mixing Outlet Dimension | 3.82 Inch |
| Manufacturer | Legend Valve |
| Manufacturer Name | Legend Valve |
| Manufacturer Part Number | 115-282NL |
| Nominal Size | 3/8 Inch x 3/8 Inch x 3/8 Inch x 3/8 Inch |
| Package/Shipping Height | 9.000 Inch |
| Package/Shipping Length | 16.600 Inch |
| Package/Shipping Quantity | 40 per Case |
| Package/Shipping Width | 9.600 Inch |
| Pressure Rating | 150 PSI |
| Series/Model | T-47NL |
| Temperature Rating | 120 to 200 Deg F (Hot Inlet), 38 to 80 Deg F (Cold Inlet), 120 Deg F (Outlet) |
| UNSPSC | 40141600 |
| UPC | 662545138879 |
