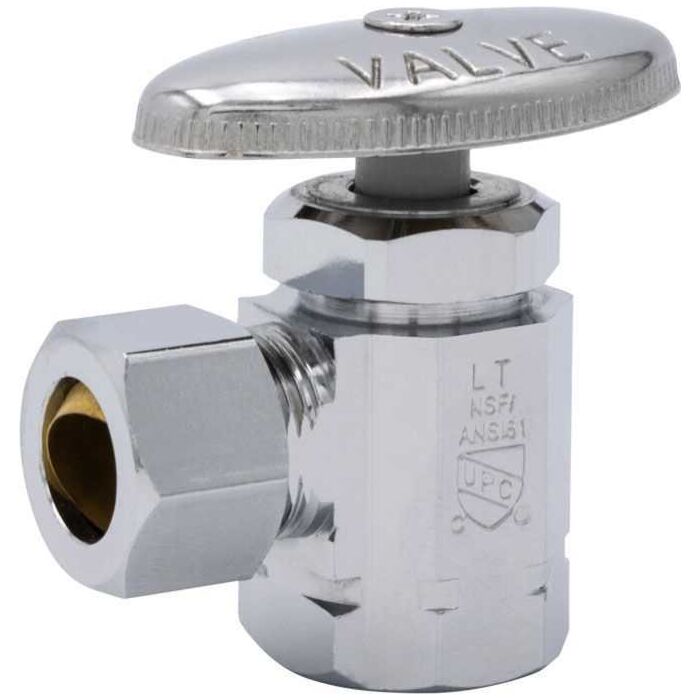

R-17 ANGLE VALVE 1/2 FIP X 3/8 COMP T-581 NO LEAD LEGEND

SKU

114-103NL

UPC:

662545087184

Available In stock

Only 84 Left

1/2" x 3/8", FPT x Compression, 110 PSI CWP, Lead-Free, Chrome Plated Forged Brass Body, Multi-Turn Handle, Angle, Supply Stop Valve

Product Description

More Information
Compact, Brass Body is Machined from a Single Piece of Barstock, Providing the Highest Level of Durability and Strength; Thermoplastic Stems (Except Sweat Configurations) Resist Scale and Debris Build-Up Better than Metallic Stems, Even in Hard Water Conditions; Each Stop is Individually Packaged, Preventing Connection Component Loss and Protecting the Stop from Contamination; Lead-Free	Supply Stop Valve; Type Angle; Actuation Type Multi-Turn Handle; Nominal Size 1/2 Inch x 3/8 Inch; End Connection Female Threaded x Compression; Body Material UNS C46400 Chrome Plated Forged Brass Alloy; Seat Material EPDM Rubber; Handle Material ASTM Z30A Copper Chrome Plated Die-Cast Brass Alloy; Pressure Rating 110 PSI Non-Shock CWP; Application Plumbing, Potable Water; Applicable Standard ANSI/NSF 61G, ANSI/ASME B1.20.1, CUPC, ISO 9002; Lead-Free

Specifications
Actuation Type	Multi-Turn Handle
Body Material	UNS C46400 Chrome Plated Forged Brass Alloy
End Connection	Female Threaded x Compression
Handle Material	ASTM Z30A Copper Chrome Plated Die-Cast Brass Alloy
Individual Item Weight	0.200 Pound
Manufacturer	Legend Valve
Manufacturer Name	Legend Valve
Manufacturer Part Number	114-103NL
Nominal Size	1/2 Inch x 3/8 Inch
Package/Shipping Height	11.200 Inch
Package/Shipping Length	11.600 Inch
Package/Shipping Quantity	200 per Case
Package/Shipping Width	15.000 Inch
Pressure Rating	110 PSI Non-Shock CWP
Seat Material	EPDM Rubber
Series/Model	T-581NL
Type	Angle
UNSPSC	40141600
UPC	662545087184

More Information
Manufacturer Catalog Document	Manufacturer Specification/Technical Document	Manufacturer Warranty Document
