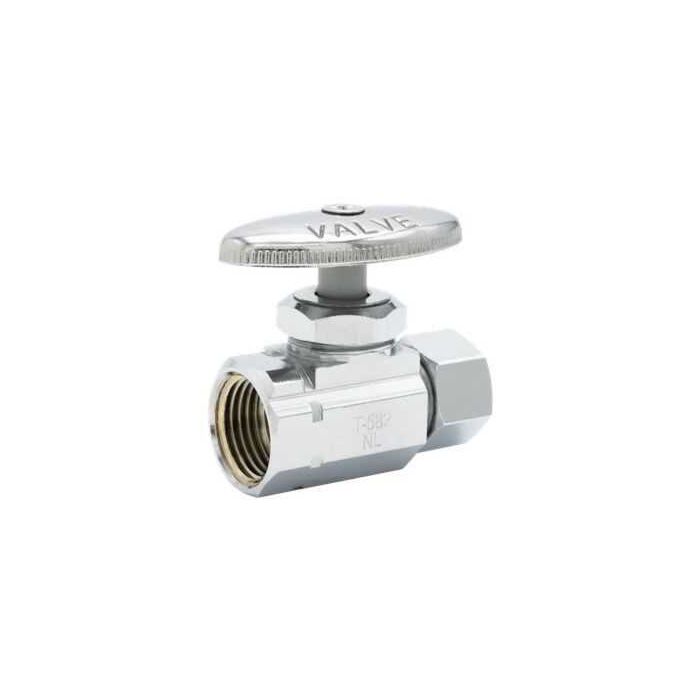

LEGEND R-10 T-582 STRAIGHT STOP VALVE 3/8X3/8 LF

SKU

13-114-202

UPC:

662545087399

Call for Availability

3/8" x 3/8", FPT x Compression, 110 PSI CWP Non-Shock, Lead-Free, Chrome Plated Forged Brass, Multi-Turn, Straight, Supply Stop Valve

Product Description

More Information
Compact, Brass Body is Machined from a Single Piece of Barstock, Providing the Highest Level of Durability and Strength; Preventing Connection Component Loss and Protecting the Stop from Contamination; Lead-Free	Supply Stop Valve; Type Straight, Angle; Actuation Type Multi-Turn Handle; Nominal Size 3/8 Inch x 3/8 Inch; End Connection Female Threaded x Compression; End to End Distance 2.04 Inch; Body Material UNS C46400 Chrome Plated Forged Brass Alloy; Seat Material EPDM Rubber; Handle Material ASTM Z30A Chrome Plated Die-Cast Brass; Pressure Rating 110 PSI Non-Shock CWP; Application Plumbing, Potable Water; Applicable Standard ANSI/NSF 61G, ANSI/ASME B1.20.1, CUPC, ISO 9002; Lead-Free	Traditional

Specifications
Actuation Type	Multi-Turn Handle
Body Material	UNS C46400 Chrome Plated Forged Brass Alloy
California Proposition 65 Warning	Yes
End Connection	Female Threaded x Compression
End To End Distance	2.04 Inch
Handle Material	ASTM Z30A Chrome Plated Die-Cast Brass
Individual Item Weight	0.250 Pound
Manufacturer	Legend Valve
Manufacturer Name	Legend Valve
Manufacturer Part Number	114-202NL
Nominal Size	3/8 Inch x 3/8 Inch
Package/Shipping Height	2.500 Inch
Package/Shipping Length	10.900 Inch
Package/Shipping Quantity	200 per Case
Package/Shipping Width	2.900 Inch
Pressure Rating	110 PSI Non-Shock CWP
Seat Material	EPDM Rubber
Series/Model	T-582NL
UNSPSC	40141600
UPC	662545087399

More Information
Manufacturer Catalog Document	Manufacturer Specification/Technical Document
