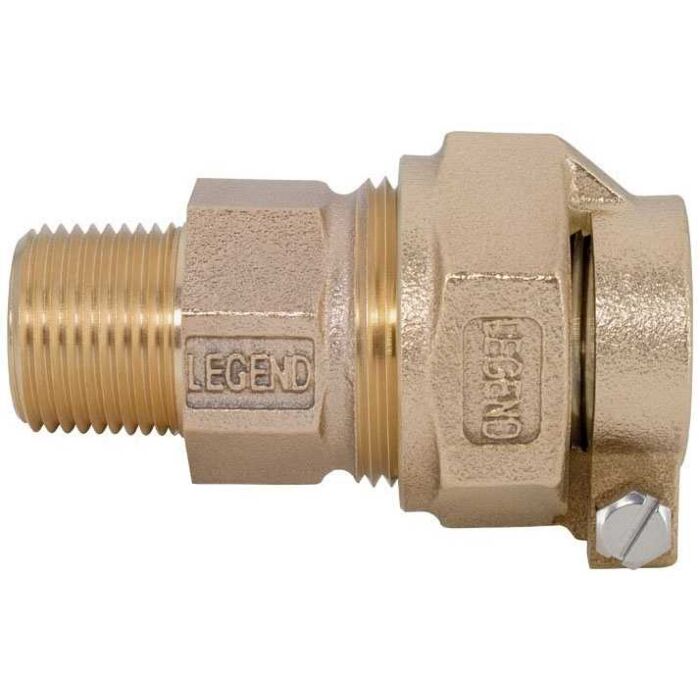

LEGEND PAK JOINT FITTING 313-204NL 3/4" CTS X MIP MALE

SKU

13-313-204

UPC:

662545084244

Available In stock

Only 28 Left

3/4" x 3/4", CTS Pack Joint x MPT, 100 PSI, SDR 9, Lead-Free, Cast Bronze, Straight, Male Adapter

Product Description

More Information
Designed and Manufactured for the Repair of or New Underground Water Service Applications Only; CTS Pack Joint End Connections Provide the Maximum Pullout Resistance against Internal Pressure Variations and Backfilling Stress; Lead-Free	Adapter Fitting; Type Straight; Size A 3/4 Inch; Size B 3/4 Inch; Schedule SDR9; End Connection CTS Pack Joint x Male Threaded; Material UNS C89836 Bronze; Material Specification ASTM B584; Process Cast; Pressure Rating 100 PSI; Temperature Rating 100 Deg F; Gasket Supplied Yes; Gasket Details Commercial Grade Buna-N Rubber; Application Plumbing, Industrial, Commercial, Hydronic, Underground Potable Water Service; Applicable Standard ANSI/NSF 61, ANSI/ASME B1.20.1, AWWA C800; Lead-Free; Includes Cast Bronze Pack-Joint Nut, Nylon Resin Pack-Joint Anti-Friction Ring, Stainless Steel Pack-Joint Clamp Bolt

Specifications
End Connection	CTS Pack Joint x Male Threaded
Gasket Details	Commercial Grade Buna-N Rubber
Gasket Supplied	Yes
Individual Item Weight	0.640 Pound
Manufacturer	Legend Valve
Manufacturer Name	Legend Valve
Manufacturer Part Number	313-204NL
Material	UNS C89836 Bronze
Material Specification	ASTM B584
Package/Shipping Height	3.800 Inch
Package/Shipping Length	9.300 Inch
Package/Shipping Quantity	10 per Carton
Package/Shipping Width	4.000 Inch
Pressure Rating	100 PSI
Process	Cast
Schedule	SDR9
Series/Model	T-4300NL, 313
Size A	3/4 Inch
Size B	3/4 Inch
Temperature Rating	100 Deg F
Type	Straight
UNSPSC	40175300
UPC	662545084244

More Information
Manufacturer Catalog Document	Manufacturer Installation/Operator Document	Manufacturer Specification/Technical Document	Manufacturer Warranty Document
