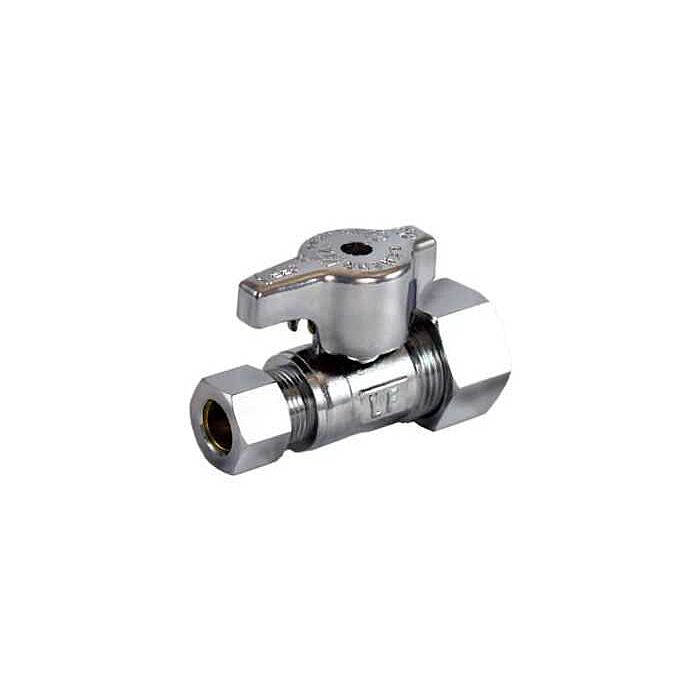

5/8" x 3/8", OD Compression x OD Compression, 125 PSI Non-Shock CWP, Lead-Free, Chrome Plated Forged Brass Body, 1/4 Turn Handle, Straight, Ball, Supply Stop Valve
Product Description
More Information
Quarter-Turn, Self-Cleaning Ball Valve Design Resists Mineral and Scale Build-Up, Assuring Positive Shut-Off and Re-Opening; The Ball-Seat Operation and Dual O-Ring Stem Seal Features Outperform Traditional Multi-Turn Stop Designs; Compact, Chrome Plated or Polished Brass Bodies are Both Durable and Decorative; Lead-Free; Made in USA
Supply Stop Valve; Type Straight, Ball; Actuation Type 1/4 Turn; Nominal Size 5/8 Inch x 3/8 Inch; End Connection Compression x Compression; End to End Distance 2.44 Inch; Body Material Brass; Seat Material EPDM Rubber; Handle Material Chrome Plated Zinc; Temperature Rating 120 Deg F; Pressure Rating 125 PSI CWP; Inclusions/Features 1/4 Turn Handle, Handle Screw, Self-Cleaning Ball Valve Design, O-Ring Stem Seal, Compression Ferrule, Compression Nut, End Adapter; Application Potable Water; Applicable Standard ANSI/NSF 61-G, UPC, IAPMO, CUPC, ISO 9002; Lead-Free; Ball Material Brass; Body Finish Chrome Plated
