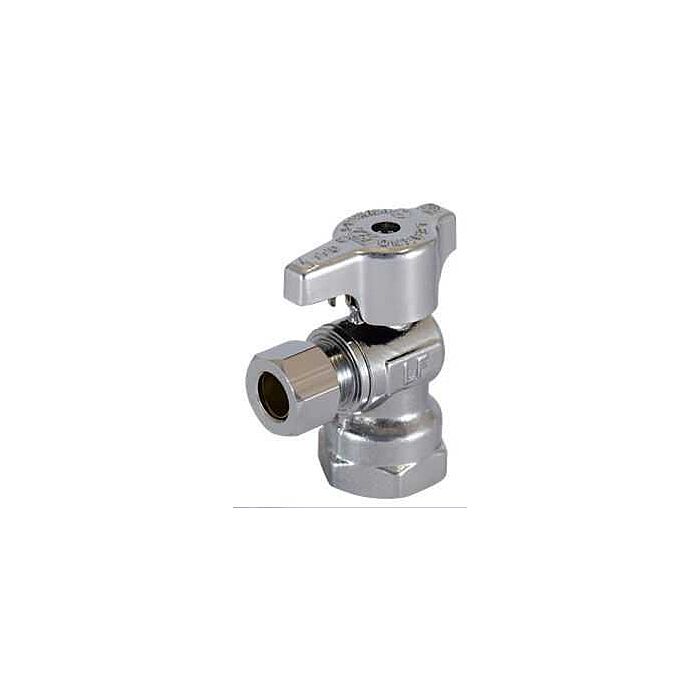

LEGEND 3/8" FIP 3/8" COMP ANGLE BALL VALVE
Call for Availability
3/8" x 3/8", FPT x Compression, 125 PSI CWP Non-Shock, Lead-Free, Forged Brass, 1/4 Turn, Angle, Ball, Supply Stop Valve
Product Description
Specifications
| Actuation Type | 1/4 Turn |
|---|---|
| Body Material | UNS Alloy C46400 Cast Brass |
| California Proposition 65 Warning | Yes |
| End Connection | Female Threaded x OD Compression |
| End To End Distance | 1.22 Inch |
| Handle Material | ASTM B86 Chrome Plated Zinc |
| Individual Item Weight | 0.230 Pound |
| Manufacturer | Legend Valve |
| Manufacturer Name | Legend Valve |
| Manufacturer Part Number | 114-602NL |
| Nominal Size | 3/8 Inch x 3/8 Inch |
| Package/Shipping Height | 7.000 Inch |
| Package/Shipping Length | 12.600 Inch |
| Package/Shipping Quantity | 120 per Case |
| Package/Shipping Width | 13.100 Inch |
| Pressure Rating | 125 PSI CWP |
| Seal Material | (2) NBR Buna-N Rubber Stem O-Ring |
| Seat Material | (2) EPDM Rubber |
| Series/Model | T-595NL |
| Stem Material | UNS Alloy C46400 Cast Brass |
| Temperature Rating | 120 Deg F |
| Type | Angle |
| UNSPSC | 40141600 |
| UPC | 662545084800 |
