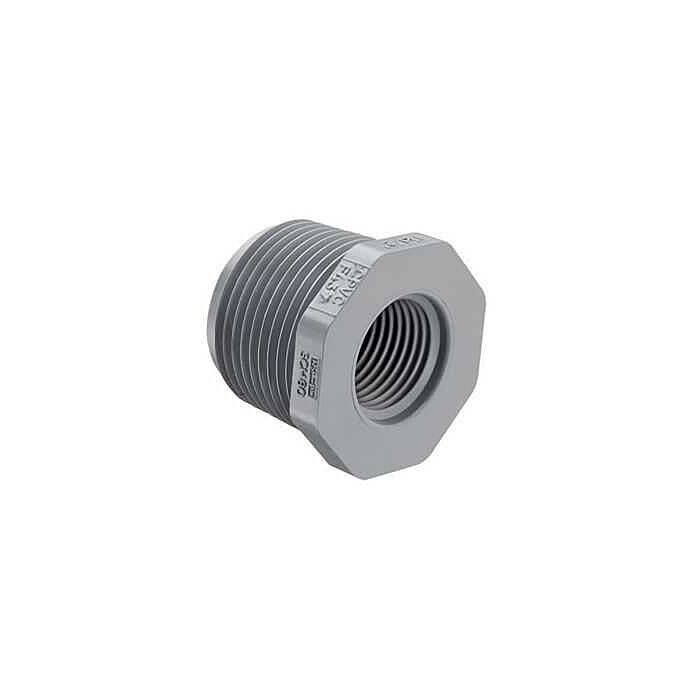

3/4" x 1/4", MPT x FPT, Schedule 80, Lead-Free, Gray, Injection Molded CPVC, Flush, Reducing, Bushing
Product Description
More Information
Exceptional Chemical and Corrosion Resistance Unlike Metal, CPVC Fittings Never Rust, Scale or Pit and will Provide Many Years of Maintenance-Free Service and Extended System Life; Higher Temperature Ratings High Temperature CPVC Thermoplastic Can Handle Fluids at Service Temperatures up to 200 Deg F, Allowing a Wide Range of Process Application, Including Corrosive Fluids; Lower Installation Costs Substantially Lower Material Costs than Steel Alloys or Lined Steel, Combined with Lighter Weight and Ease of Installation, Can Reduce Installation Costs by as Much as 60% Over Conventional Metal Systems; Higher Flow Capacity Smooth Interior Walls Result in Lower Pressure Loss and Higher Volume than Conventional Metal Fittings; Lifetime Limited Warranty; Lead-Free; Made in USA
Bushing Fitting; Type Flush, Reducing; Size 3/4 Inch x 1/4 Inch; Schedule 80; Thickness 0.154 Inch; End Connection Male Threaded x Female Threaded; Material CPVC; Material Specification ASTM D1784/F439/D2467; Process Injection Molded; Finish Gray; Temperature Rating 200 Deg F; Application Potable Water; Applicable Standard ANSI/NSF 61/372, ISO 9001; Lead-Free; Length 1 Inch
SPEARS® EverTUFF® Industrial Schedule 80 CPVC pipe and fitting designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Spears® EverTUFF® CPVC pipe, fittings and Spears® CPVC solvent cement are Certified lead-free by NSF® International (NSF® ) in accordance with ANSI/NSF® 61 and NSF® 372 for compliance with all State & Federal Regulations. Approved by national, state and most municipal building codes and listed by ICC to ASTM E84 for Flame & Smoke Characteristics of less than 25/50 for use in return air plenums (See PMG Listing No. PMG-1278 at www.icc-es-pmg.org) Resulting products are subjected to numerous verification tests to assure the very best CPVC piping products available.
