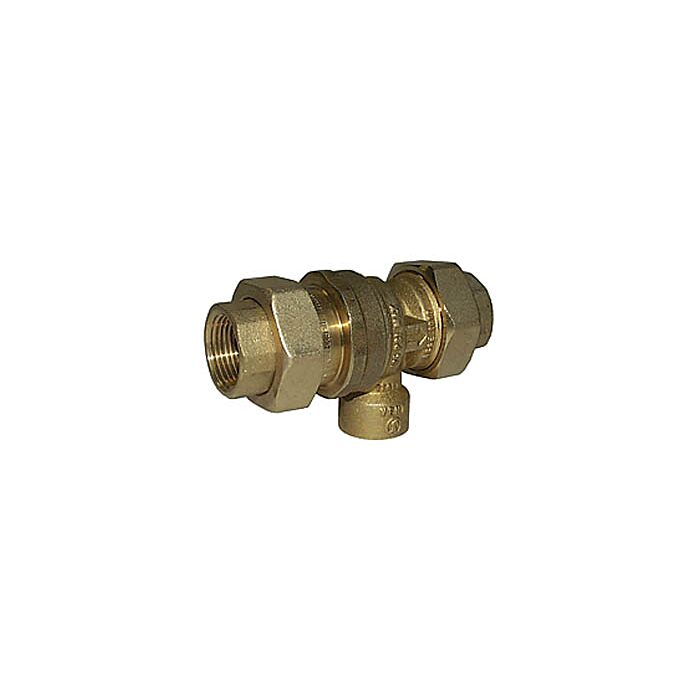

3/4" IP BACKFLOW PREVENTER IMP 9D TYPE (NOT WATTS)

SKU

30625

UPC:

662545009513

Available In stock

Only 3 Left

3/4" x 3/4", FPT x FPT, 175 PSI, 3 GPM, Forged Brass, Dual Check, Continuous Pressure, Atmospheric Vent, Backflow Preventer

Product Description

More Information
Designed for Continuous Pressure Hot or Cold Water Lines Such as Boiler Feed or Process Equipment Lines Attached to the Potable Water Supply; Inlet Screen Reduces the Chance of Check Fouling	Backflow Preventer; Type Dual Check, Continuous Pressure, Atmospheric Vent; Nominal Size 3/4 Inch; End Connection Female Threaded x Female Threaded; End to End Distance 4.125 Inch; Body Material ASTM B124/124M UNS C37700 Forged Brass; Seal Material EPDM; Flow Rate 3 GPM; Temperature Rating 250 Deg F; Pressure Rating 175 PSI at 210 Deg F; Application Potable Water System; Applicable Standard ANSI/ASME B1.20.1, ASSE 1012, CSA B64.3, ISO 9002

Specifications
Body Material	ASTM B124/124M UNS C37700 Forged Brass
End Connection	Female Threaded x Female Threaded
End To End Distance	4.125 Inch
Flow Rate	3 GPM
Individual Item Weight	1.300 Pound
Manufacturer	Legend Valve
Manufacturer Name	Legend Valve
Manufacturer Part Number	115-114
Nominal Size	3/4 Inch
Package/Shipping Height	5.900 Inch
Package/Shipping Length	17.000 Inch
Package/Shipping Quantity	25 per Carton
Package/Shipping Width	10.300 Inch
Pressure Rating	175 PSI at 210 Deg F
Seal Material	EPDM
Series/Model	T-459
Temperature Rating	250 Deg F
UNSPSC	40141600
UPC	662545009513

More Information
Manufacturer Catalog Document	Manufacturer Specification/Technical Document	Manufacturer Warranty Document
