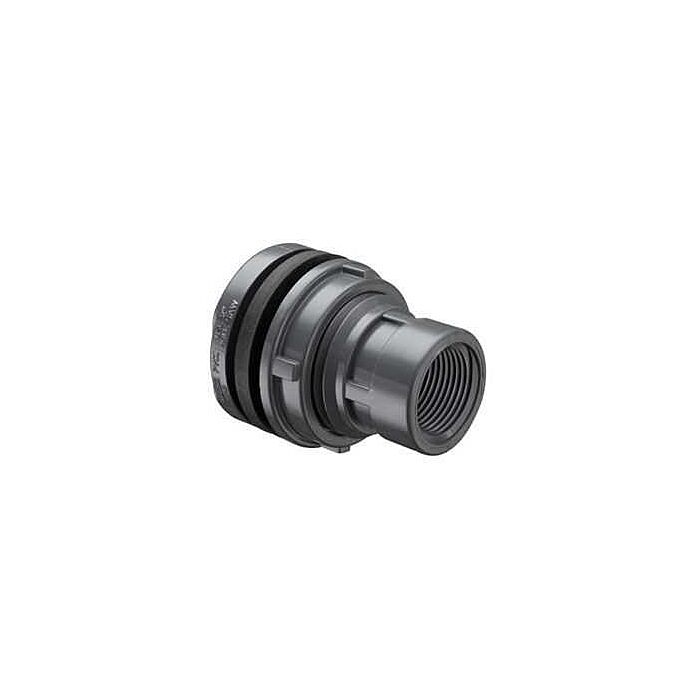

1" x 1", Socket x FPT, 150 PSI, Schedule 80, Lead-Free, Gray, Injection Molded PVC, Standard, Straight, Tank Adapter with Neoprene Gasket
Product Description
More Information
Exceptional Chemical and Corrosion Resistance Unlike Metal, PVC Fitting Never Rust, Scale or Pit and will Provide Many Year of Maintenance-Free Service and Extended System Life; High Temperature Rating PVC Thermoplastic Can Handle Fluid at Service Temperature up to 140 Deg F (60 Deg C), Allowing a Wide Range of Process Application, Including Corrosive Fluid; Lower Installation Cost Substantially Lower Material Cost than Steel Alloy or Lined Steel, Combined with Lighter Weight and Ease of Installation, Can Reduce Installation Cost by as Much as 60% Over Conventional Metal System; Higher Flow Capacity Smooth Interior Wall Result in Lower Pressure Loss and Higher Volume than Conventional Metal Fitting; Advanced Design Specialty Fitting Spears Wide Range of Innovative, Improved Product Include Numerous Metal-to-Plastic Transition Fitting and Union with Spears Patented Special Reinforced (SR) Plastic Thread; Lifetime Limited Warranty; Lead-Free; Made in USA
Tank Adapter Fitting; Type Standard; Size A 1 Inch; Size B 1 Inch; Schedule 80 S; Thickness 0.179 Inch; End Connection Socket x Female Threaded; Material PVC; Material Specification ASTM D1785/D2467; Process Injection Molded; Finish Gray; Pressure Rating 150 PSI at 73 Deg F; Temperature Rating 140 Deg F; Application Potable Water; Applicable Standard NSF, ISO 9001; Includes Neoprene Gasket
SPEARS® Schedule 80 PVC product designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verification tests to assure obtaining the very best PVC fittings available.
