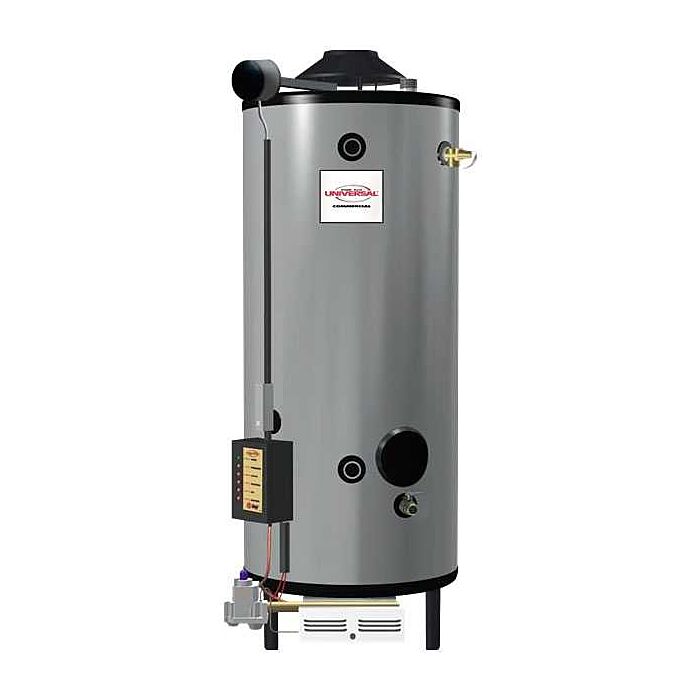

26-1/4" x 71-13/16", 199900 BTU/Hr, 91 Gallon, Porcelain Enameled Steel, Natural/Liquid Propane Gas, Short, Heavy Duty Commercial Gas Water Heater
Product Description
More Information
Space Saver Design - The Short Heights and Narrow Jacket Diameters, Plus the Top, Front and Rear Water Inlets/Outlets Offer the Ultimate in Installation Flexibility
• System Sentinel ™ LED Diagnostic System - Our Exclusive Diagnostic System, with Glowing LED Lights, Verifies System Operation Sequence by Sequence
• Patented Technology - Universal's Proprietary Steel Formulation, Patented Multi-Flue Design, Combined with Two Coats of Porcelain Enamel, Results in a Superior Heat Exchanger Design
• Stainless Steel Burners - Precision Burners, Raised Port Design are Formed from High Chromium Stain Less Steel
• Each Burner Assembly Slides Out Like a Drawer for Quick Inspection and Maintenance
• Heavy Duty Vent Hood Supports are Designed to Withstand the Rigors of Installation
• Full Port, Full Flow Drain Valve - Factory Installed Brass Drain Valve Allows for Faster Draining and Servicing
• Direct Spark to Pilot Ignition System - Energy Saving Ignition that Ignites Pilot Only When there is a Call for Heat
• Patented Anode Rods - Anode Design Utilizes Multiple Magnesium Rods to Ensure Corrosion Resistance for a Long Tank Life""
• Commercial Gas Water Heater • Type Short, Heavy Duty • Inlet/Outlet Connection 1-1/2 Inch x 1-1/2 Inch Top, 1-1/2 Inch Front/Rear • Gas Type Natural/Liquid Propane • Gas Connection 3/4 Inch • Relief Valve Details CSA/ASME T and P Relief Valve Factory Installed • Draft Hood Outlet/Vent Size 6 Inch • Input Supply Rating 199900 BTU/Hour • Tank Dimensions 26-1/4 Inch Diameter Jacket x 71-13/16 Inch Height • Tank Height Including Draft Hood 76-5/16 Inch • Tank Material Porcelain Enameled Steel • Tank Capacity 91 Gallon (US) • Tank Warranty 3 Year Limited • GPH Recovery 138 GPH at 140 Deg F • Ignition Type Direct Spark-to-Pilot • Drain Valve Details Full Port Full Flow Brass • Insulation Details Fiberglass • Burner Type High Chromium Stainless Steel • Options Return Outlet, Circulator Control • Inclusions/Features Bolted Hand Hole Cleanout, Low Profile Automatic Flue Damper, Patented Anode Rod • Applicable Standard CSA, ANSI Z21.10.3, UL, NSF 5, ASHRAE, AHRI, CEC • Thermal Efficiency 80 Percent • Pressure Rating 150 PSI (Working)
