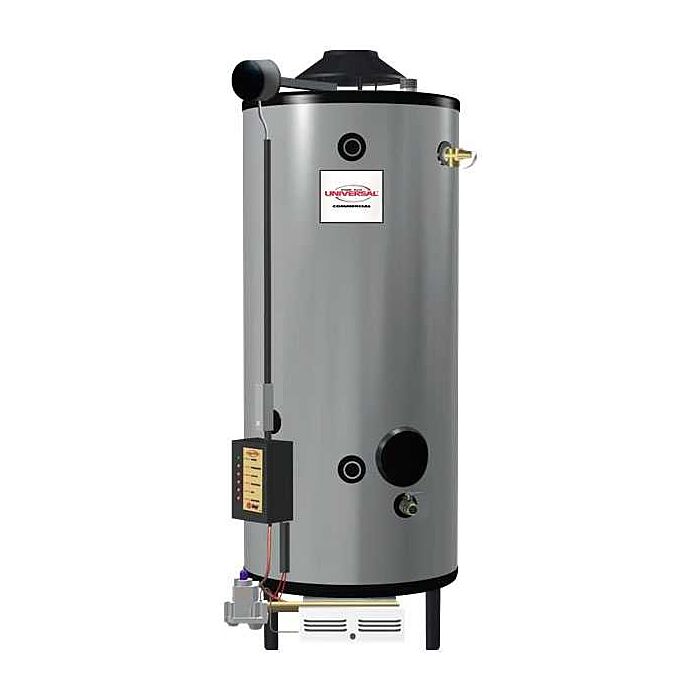

26-1/4" x 64", 199900 BTU/Hr, 150 PSI, 76 Gallon, Power Vent, Porcelain Enameled Steel, Heavy Duty, Short, Natural/Liquid Propane, Commercial Gas Water Heater
Product Description
More Information
Space Saver Design-The Short Heights and Narrow Jacket Diameters, Plus the Top, Front and Rear Water Inlets/Outlets Offer the Ultimate in Installation Flexibility
• System Sentinel LED Diagnostic System-Our Exclusive Diagnostic System with Glowing LED Lights, Verifies System Operation Sequence by Sequence
• Patented Technology-Universals Proprietary Steel Formulation, Patented Multi-Flue Design, Combined with Two Coats of Porcelain Enamel, Results in a Superior Heat Exchanger Design
• Stainless Steel Burners-Precision Burners, Raised Port Design are Formed from High Chromium Stain Less Steel
• Each Burner Assembly Slides Out Like a Drawer for Quick Inspection and Maintenance
• Heavy Duty Vent Hood Supports are Designed to Withstand the Rigors of Installation
• Full Port, Full Flow Drain Valve-Factory Installed Brass Drain Valve Allows for Faster Draining and Servicing
• Direct Spark to Pilot Ignition System-Energy Saving Ignition that Ignites Pilot Only When there is a Call for Heat
• Patented Anode Rods-Anode Design Utilizes Multiple Magnesium Rods to Ensure Corrosion Resistance for a Long Tank Life""
• Commercial Gas Water Heater • Type Short, Heavy Duty • Inlet/Outlet Connection 1-1/2 Inch x 1-1/2 Inch Top, 1-1/2 Inch Front/Rear • Gas Type Natural/Liquid Propane • Gas Connection 3/4 Inch • Relief Valve Details T and P Relief Valve Factory Installed • Venting Type Power • Draft Hood Outlet/Vent Size 6 Inch • Input Supply Rating 199900 BTU/Hour • Tank Dimensions 26-1/4 Inch Diameter x 64 Inch Height • Tank Height Including Draft Hood 68-13/16 Inch • Tank Material Porcelain Enameled Steel • Tank Capacity 76 Gallon • Tank Warranty 3 Year Limited • GPH Recovery 215 GPH at 90 Deg F • ASME Code NO • Ignition Type Direct Spark-to-Pilot • Drain Valve Details Full Port Full Flow Brass • Insulation Details Fiberglass • Burner Type High Chromium Stainless Steel • Options Return Outlet, Circulator Control • Inclusions/Features Bolted Hand Hole Cleanout, Low Profile Automatic Flue Damper, Patented Anode Rod • Applicable Standard ANSI Z21.10.3, NSF 5, ASHRAE, AHRI, CEC, UL, CSA • Thermal Efficiency 80 Percent • Pressure Rating 150 PSI
