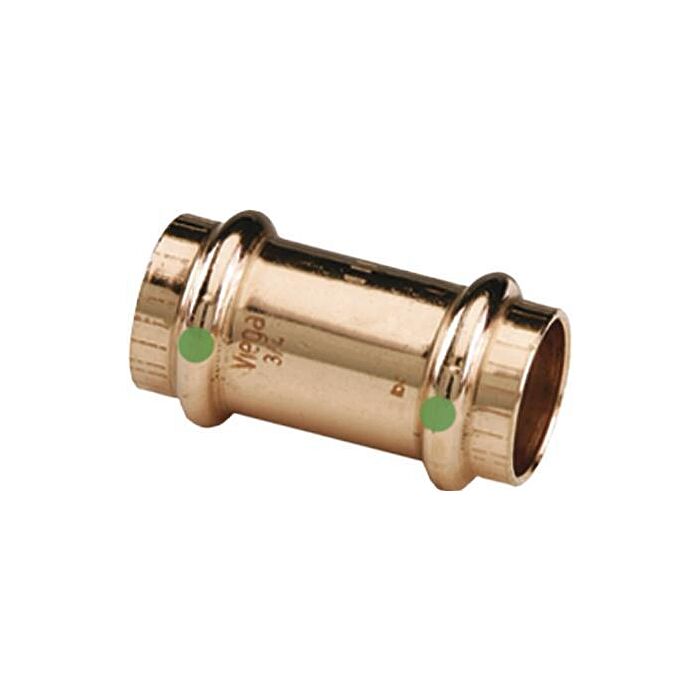

2-1/2" x 2-1/2", Press x Press, 15 PSI WSP, 200 PSI CWP, Wrot Copper, Large, Straight, Coupling with Stop
Product Description
More Information
Press-Type End Connections Eliminate the Need for Soldering, Reducing Labor and Material Costs and Eliminating the Fire Hazard Associated with the Process; Press-To-Connect Connections are Designed for Installation onto ASTM B88 Types K, L and M Hard-Drawn Copper Tubing
Coupling Fitting; Size A 2-1/2 Inch; Size B 2-1/2 Inch; End Connection Large Press x Large Press; Material C12200/C11000 Copper Alloy; Material Specification ASTM B75/B152; Process Wrot; Pressure Rating 200 PSI CWP, 15 PSI SWP; Temperature Rating 0 to 250 Deg F; Gasket Supplied Yes; Gasket Details EPDM O-Ring; Application Potable Water, Plumbing; Applicable Standard ANSI/ASME B16.51/B16.22/B1.20.1, NSF/ANSI 61, UPC/IAPMO, CSA, CUPC; Lead-Free; Includes Stop, Stainless Steel Grip Ring, Acetal Resin Guide Ring
