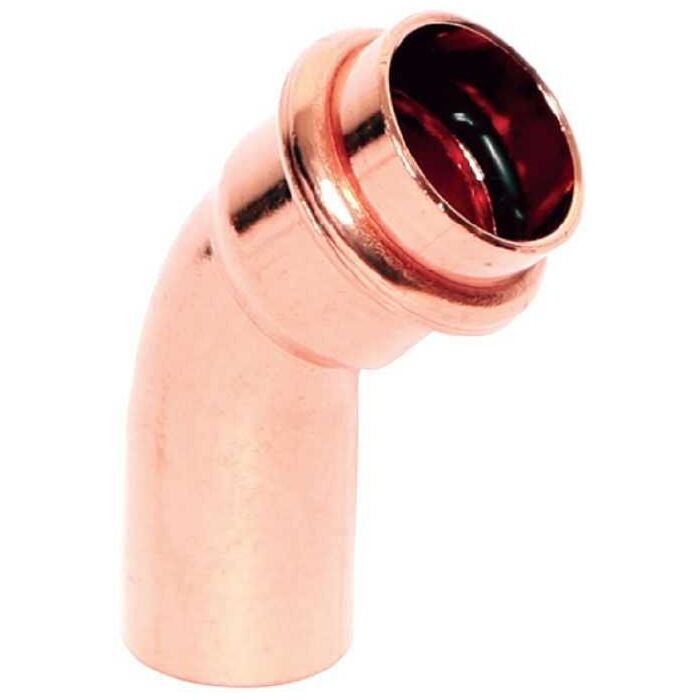

1" PXFTG STREET 45 ELBOW

SKU

PP100ST45

UPC:

662545120454

Available In stock

Only 372 Left

1" x 1", Press x FTG, 15 PSI WSP, 200 PSI CWP, Wrot Copper, Straight, 45D Street Elbow

Product Description

More Information
Press-Type End Connections Eliminate the Need for Soldering, Reducing Labor and Material Costs and Eliminating the Fire Hazard Associated with the Process; Press-To-Connect Connections are Designed for Installation onto ASTM B88 Types K, L and M Hard-Drawn Copper Tubing	Elbow Fitting; Type Street, Straight; Angle 45 Degree; Size A 1 Inch; Size B 1 Inch; End Connection Press x Male Soldered; Material C11000/C12200 Copper Alloy; Material Specification ASTM B75/B152; Process Wrot; Pressure Rating 200 PSI CWP, 15 PSI SWP; Temperature Rating 0 to 250 Deg F; Application Plumbing, Industrial, Commercial, Hydronic; Applicable Standard NSF/ANSI 61, ANSI/ASME B16.51/B16.22/B1.20.1, UPC; Lead-Free; Includes EPDM O-Ring, Stainless Steel Grip Ring, Acetal Resin Guide Ring

More Information
Manufacturer Catalog Document	Manufacturer Installation/Operator Document	Manufacturer Specification/Technical Document	Manufacturer Warranty Document
