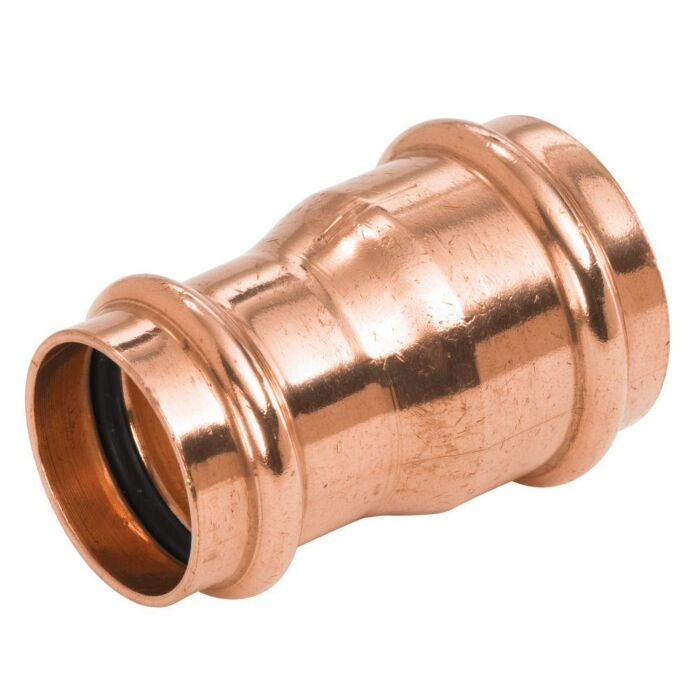

1-1/4 X 1 PXP PROPRESS REDUCER

SKU

PP114100REDU

UPC:

662545122120

Call for Availability

1-1/4" x 1", Press x Press, 15 PSI WSP, 200 PSI CWP, Wrot Copper, Reducing, Coupling

Product Description

More Information
Press-Type End Connections Eliminate the Need for Soldering, Reducing Labor and Material Costs and Eliminating the Fire Hazard Associated with the Process; Press-To-Connect Connections are Designed for Installation onto ASTM B88 Types K, L and M Hard-Drawn Copper Tubing	Coupling Fitting; Type Reducing; Size A 1-1/4 Inch; Size B 1 Inch; End Connection Press x Press; Material C12200/C11000 Copper Alloy; Material Specification ASTM B75/B152; Process Wrot; Pressure Rating 200 PSI CWP, 15 PSI SWP; Temperature Rating 0 to 250 Deg F; Gasket Supplied Yes; Gasket Details EPDM O-Ring; Application Potable Water, Plumbing; Applicable Standard ANSI/ASME B16.51/B16.22/B1.20.1, NSF/ANSI 61, UPC/IAPMO, CSA, CUPC; Lead-Free; Includes Stainless Steel Grip Ring, Acetal Resin Guide Ring	LegendPress®

More Information
Manufacturer Catalog Document	Manufacturer Installation/Operator Document	Manufacturer Specification/Technical Document	Manufacturer Warranty Document
