1/2" x 1/2" x 1/2", Push-Fit x Push-Fit x Push-Fit, 200 PSI, Natural Brass/Chrome Plated, DZR Brass, Tee
Product Description
More Information
It�s the Easiest Way to Join Copper, CPVC or PEX Pipe in any Combination with No Soldering, Clamps, Unions or Glue; The Tube Shall be Inserted into the SharkBite PTC Fitting in the First Stage through a Release Collar and then through a Stainless Steel Grab Ring; The Grab Ring has Teeth that Open Out and Grip onto the Tube; At the Second Stage the Tube Shall be Pushed Through an O-Ring Protector Which Aligns the Pipe; A Specially Formulated EPDM O-Ring Shall be Compressed Between the Wall of the Fitting and the Tube Before the End of the Tube Reaches the Tube Stop; Only When the Pipe has Passed Through the O-Ring and Reached the Pipe Stop Shall a Secure Joint be Created; Instant Push-Fit Connection for Increased Ease-of-Use; Integral Pipe Liner for PEX Installations; Design Certified and Agency Listed; Approved to be Used Underground and Behind Walls Without Access Panel; 25 Year Limited Warranty

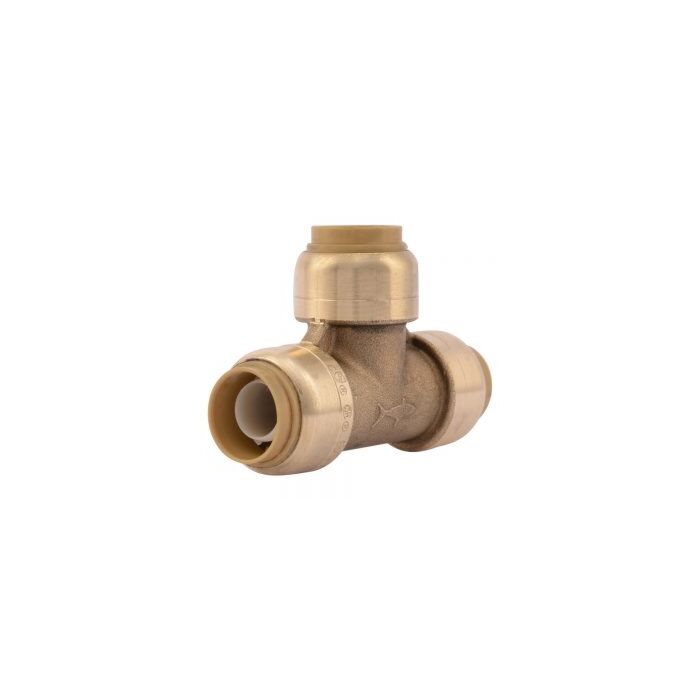

Tee Fitting; Nominal Size 1/2 Inch; End Connection Push-Fit x Push-Fit x Push-Fit; Material DZR Brass (Body), EPDM (O-Ring); Finish Natural Brass/Chrome Plated; Pressure Rating 200 PSI; Temperature Rating 200 Deg F; Application Potable Water, Hydronic Heating Water Distribution, Copper, CPVC, PEX Pipe; Applicable Standard ASSE 1061, CSA B125.3, CUPC, IAPMO, IPC, UPC; Insertion Depth 0.938 Inch
