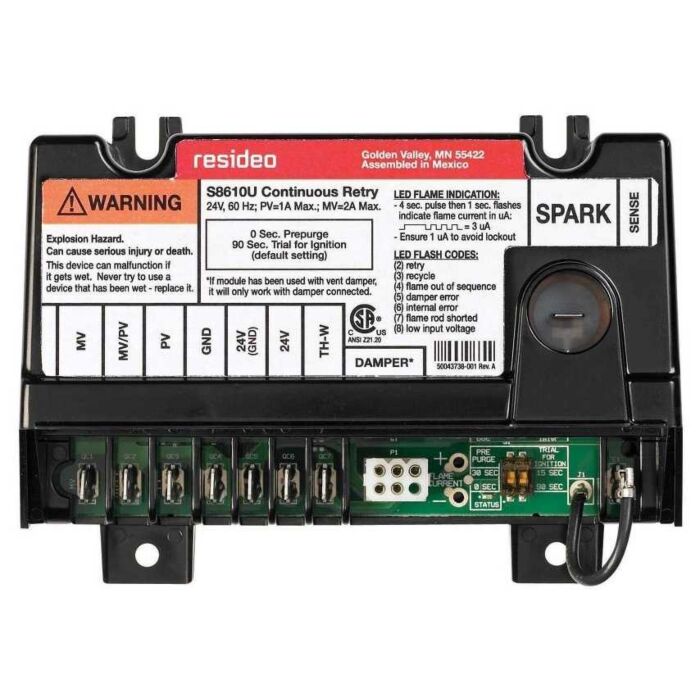

5-7/16" x 2-5/8" x 3-15/16", 24 VAC 60 Hz, 15 or 90 Sec Ignition Trial, 2 Sec Flame Failure Response, Internal High Voltage Spark Generator, Single/Dual Rod, Natural/Liquid Propane Gas, Universal, Intermittent, Pilot Ignition Module
Product Description
More Information
Honeywell Intermittent Pilot Ignition Modules, Provides Ignition Sequencing, Flame Monitoring and Safety Shut-Off for Intermittent Pilot Warm Air Furnaces and Heating Appliance; Provides 100% Pilot Gas Shut-Off if Pilot Fails to Light after 6 Minute Delay, Trial for Ignition is Repeated, Ignition Trail/Delay Sequence is Repeated Until the Appliance Lights or Call for Heat is Removed for Use with Natural or LP Gas
Pilot Ignition Module; Type Universal; Fuel Type Natural/Liquid Propane Gas; Flame Sense Type Single/Dual Rod; Ignition Source Internal High Voltage Spark Generator; Ignition Sequence Continuous Retry; Ignition Trial Time 15 or 90 Second; Prepurge Time 30 Second; Flame Failure Response Time 2 Second; Valve Rating 1 Amp (Pilot), 2 Amp (Main) at 24 Volt AC; Power Rating 24 Volt AC 60 Hertz; Size 5-7/16 Inch Width x 2-5/8 Inch Depth x 3-15/16 Inch Height; Temperature Rating -40 to 165 Deg F; Approval CSA (Canada and US); Voltage Rating 24 Volt AC 60 Hertz; Power Rating 2 Volt Amp; Color Black; Application Intermittent Pilot Warm Air Furnace and Heating; Includes Damper Connection with Automatic Vent Damper Plug
Universal intermittent pilot ignition module replaces multiple field installed intermittent pilot modules supplied by Resideo, Robertshaw, Johnson, and UTEC (HSC). Uses existing intermittent pilot burner. Includes cross reference, instructions, and accessories for easy replacement.
Specifications
Specifications
Approval
CSA
Flame Failure Response Time
2 Second
Flame Sense Type
Single/Two Rod
Ignition Sequence
Continuous Retry
Ignition Source
Internal High Voltage Spark Generator
Ignition Trial Time
15 or 90 Second
Manufacturer
Honeywell International Inc. (Resideo Technologies Inc.)
Manufacturer Name
Honeywell International Inc. (Resideo Technologies Inc.)
Manufacturer Part Number
S8610U3009/U
Prepurge Time
Configurable to 30 Second or No Pre-Purge
Series/Model
S8610U
Size
5-7/16 Inch Width x 2-5/8 Inch Depth x 3-15/16 Inch Height
Temperature Rating
-40 to 165 Deg F (Ambient)
Type
Universal
UNSPSC
40101800
UPC
085267268363
Valve Rating
1 Amp Pilot/2 Amp Main at 165 Deg F, 1 Amp Pilot/1 Amp Main at 175 Deg F
