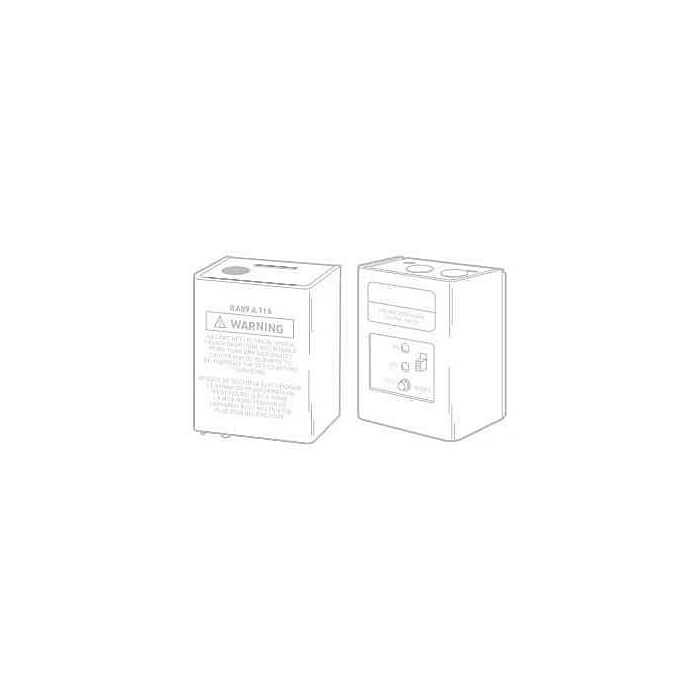

HONEYWELL SWITCHING RELAY 120V

SKU

RA89A1074

UPC:

085267990080

Call for Availability

120/240 VAC 50/60 Hz, 24 VAC Coil, SPST, 2-Wire Terminal, 1-Pole, Wall Mount, AC Operated, Switching Relay with Integral Transformer and Enclosure

Product Description

More Information
Integral Transformer Provides Low Voltage Power for Control Circuit	Switching Relay; Type AC Operated; Contact Configuration SPST; Contact Voltage Rating 120/240 Volt AC 50/60 Hertz; Contact Current Rating 10.2 Amp at 120 Volt AC/5.1 Amp at 240 Volt AC (FLA), 61.2 Amp at 120 Volt AC/30.6 Amp at 240 Volt AC (LRA), 10 Amp at 120 Volt AC/6 Amp at 240 Volt AC (Resistive); Coil Voltage 24 Volt AC; Terminal Type 2-Wire; Mounting Wall; Approval UL, CSA; Overall Dimension 4-1/4 Inch Width x 5-5/16 Inch Depth x 5-1/4 Inch Height; Voltage Rating 120 Volt (Input); Coil Current Rating 0.4 Amp; Power Rating 5 Watt; Control Circuit 2-Wire; Number of Poles 1; Temperature Rating 115 Deg F at 60 Hertz/105 Deg F at 50 Hertz; Application Switch Configuration; Includes Integral Transformer, Enclosure	TRADELINE®

Specifications
Approval	UL, CSA
Coil Voltage	24 Volt AC 50/60 Hertz
Contact Configuration	SPST
Contact Current Rating	10.2 Amp at 120 Volt AC, 5.1 Amp at 240 Volt AC (Full Load), 61.2 Amp at 120 Volt AC, 30.6 Amp at 240 Volt AC (Locked Rotor), 10 Amp at 120 Volt AC, 6 Amp at 240 Volt AC (Resistive)
Contact Voltage Rating	120 Volt AC
Manufacturer	Honeywell International Inc. (Resideo Technologies Inc.)
Manufacturer Name	Honeywell International Inc. (Resideo Technologies Inc.)
Manufacturer Part Number	RA89A1074/U
Series/Model	RA89A
Terminal Type	2-Wire Control Circuit
UNSPSC	39122325
UPC	085267990080

More Information
Manufacturer Installation/Operator Document	Manufacturer Other Document_1	Manufacturer Specification/Technical Document
