120/240 VAC 50/60 Hz, 12 VDC Secondary, 24 VAC Coil, DPST, 2-Wire Terminal, Wall Mount, AC Operated, Switching Relay with Integral Transformer and Enclosure
Product Description
More Information
Integral Transformer Provides Low Voltage Power for Control Circuit; The RA832A is a TPST Relay; One Relay Pole is Designed for Low Voltage or Millivoltage Auxiliary Load; Two Other Relay Pole are for Line Voltage Load
Switching Relay; Type AC Operated; Contact Configuration DPST; Contact Voltage Rating 120/240 Volt AC 50/60 Hertz, 12 Volt DC (Secondary); Contact Current Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC (FLA), 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC (LRA), 10 Amp at 120 Volt AC/6 Amp at 240 Volt AC (Resistive), 1 Amp at 12 Volt DC (Secondary); Coil Voltage 24 Volt AC; Terminal Type 2-Wire; Mounting Wall; Approval UL, CSA; Overall Dimension 4-1/4 Inch Width x 5-5/16 Inch Depth x 5-1/4 Inch Height; Voltage Rating 120 Volt (Input); Coil Current Rating 0.4 Amp; Power Rating 5 Watt; Control Circuit 2-Wire; Temperature Rating 115 Deg F at 60 Hertz/105 Deg F at 50 Hertz; Application Switch Configuration; Includes Integral Transformer, Enclosure

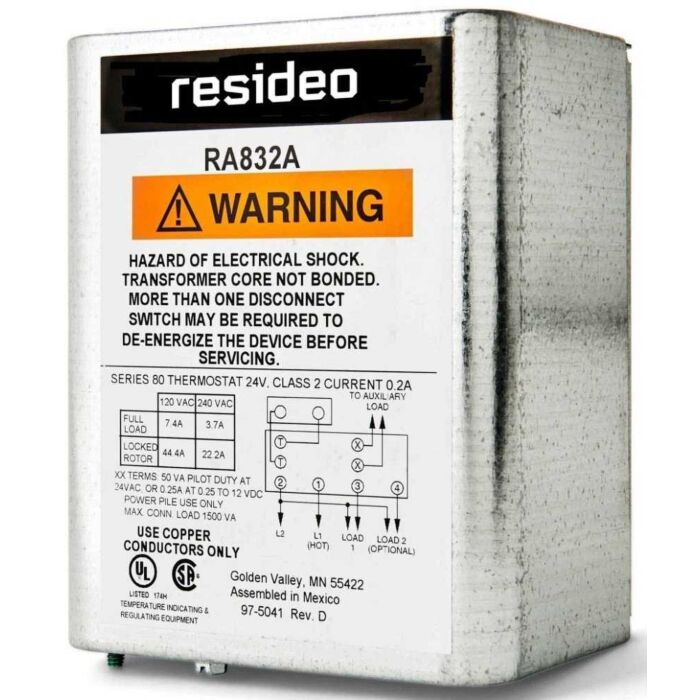

The RA832 switching relay with low voltage and millivoltage contacts from Resideo provides intermediate switching of a line voltage device from a low voltage controller. It features 24 V coil controls and an internal 24 V transformer, and is a TPST relay.
TRADELINE®
Specifications
Specifications
Approval
UL, CSA
Coil Voltage
24 Volt AC 50/60 Hertz
Contact Configuration
DPST
Contact Current Rating
7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC (Full Load), 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC (Locked Rotor), 10 Amp at 120 Volt AC/6 Amp at 240 Volt AC (Resistive)
Contact Voltage Rating
120/240 Volt AC 50/60 Hertz
Manufacturer
Honeywell International Inc. (Resideo Technologies Inc.)
Manufacturer Name
Honeywell International Inc. (Resideo Technologies Inc.)
