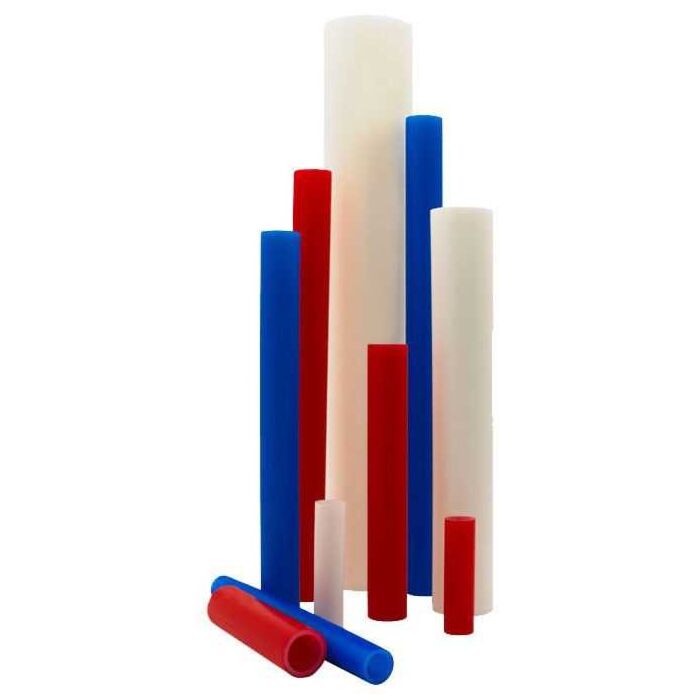

1 X 20' STRAIGHT PEX PIPE WHITE
1" x 20' Stick, 1.125" OD, 0.125" Thick, PEX, 100/200 PSI, White, HDPE, Lead-Free, Tubing
Product Description
More Information Resistance to Corrosion and Aggressive Chemicals
• Strong, Durable, Flexible and Lightweight
• Easy to Install
• Leak-Proof Systems
• Lower Labor Requirements for Installation
• Significant Overall Cost Savings
• Long Term Service Life
• Sustainable and Environmentally Responsible
• This Product is Intended for Use in Piping Systems where High Temperatures and Aggressive Oxidation Conditions Exist
• Suitable Applications Include Hot and Cold Potable Water
• HDPE 100% Recyclable
• BPA-Free
• Lead-Free
• Made in USA"" | • Tubing
• Outside Diameter 1.125 Inch
• Wall Thickness 0.125 Inch
• Length 20 Foot Stick
• End Connection PEX
• Material HDPE
• Material Specification ASTM F2769
• Pressure Rating 100 PSI at 180 Deg F, 200 PSI at 73 Deg F
• Color White
• Weight 3.46 Pound
• Application Hot and Cold Potable Water System, Piping System
• Applicable Standard ANSI/NSF 14/16, ASSE 1061, AWWA C901, CSA B137.18
• Lead-Free
• Nominal Size 1 Inch
• Schedule SDR 9
• Capacity 3.04 Gallon per 100 Foot | • Lead-Free
• Nominal Size 1 Inch
• Schedule SDR 9
• Capacity 3.04 Gallon per 100 Foot | HyperPure® |
Specifications
Specifications | California Proposition 65 Warning | Yes |
|---|
| End Connection | PEX |
|---|
| Individual Item Weight | 3.460 Pound |
|---|
| Length (Feet) | 20 Feet |
|---|
| Manufacturer | Legend Valve |
|---|
| Manufacturer Name | Legend Valve |
|---|
| Manufacturer Part Number | 500-10-20 |
|---|
| Material | PEX |
|---|
| Material Specification | ASTM F2769 |
|---|
| Package/Shipping Height | 7.000 Inch |
|---|
| Package/Shipping Length | 240.000 Inch |
|---|
| Package/Shipping Quantity | 15 per Case |
|---|
| Package/Shipping Width | 7.000 Inch |
|---|
| Pressure Rating | 100 PSI at 180 Deg F, 200 PSI at 73 Deg F |
|---|
| Series/Model | 500 |
|---|
| Size (Inches) | 1" |
|---|
| UNSPSC | 40183004 |
|---|
| UPC | 662545118239 |
|---|
