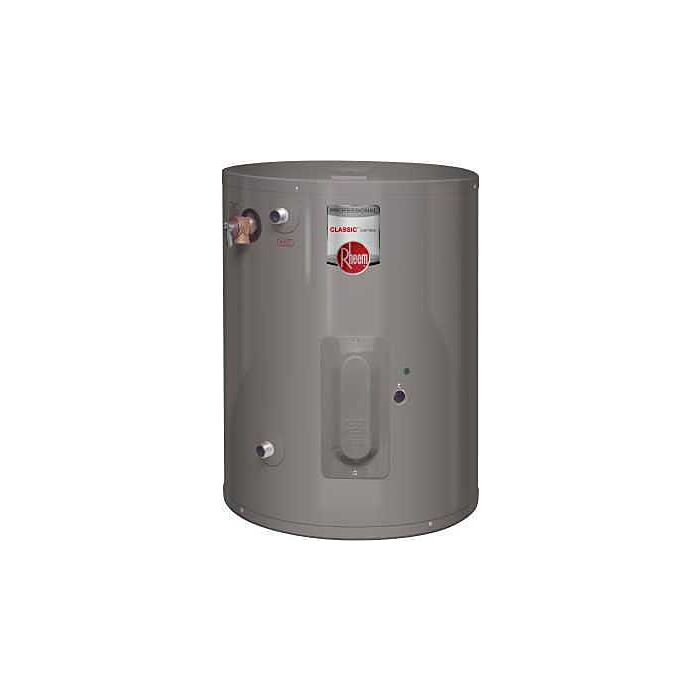

9-3/4" x 14", 1/2" NPT Inlet/Outlet, 120 VAC 1-Phase, 1440 W, Lead-Free, Glass Lined, Point-of-Use, Residential Electric Water Heater
Product Description
More Information
Professional Classic Point-of-Use Electric Water Heaters Feature a Space-Saving Design for Installation in Limited Spaces
• Automatic Thermostat Keeps Water at Desired Temperature
• Premium Grade Anode Rod Provides Long-Lasting Tank Protection
• High Efficiency Heating Element
• Over-Temperature Protector Cuts Off Power in Excess Temperature Situations
• Automatic Thermostat Keeps Water at Desired Temperature
• Exclusive Rheemglas Tank Lining Resists Corrosion and Prolongs Tank Life
• Lead-Free""
• Residential Electric Water Heater • Type Residential, Electric • Inlet/Outlet Connection 1/2 Inch Threaded x 1/2 Inch Threaded • Relief Valve Details T and P Relief Valve Included • Number of Elements 1 • Power Rating of Elements 1440 Watt • Electrical Input Supply Rating 120 Volt AC 1-Phase 2-Wire • Tank Dimensions 9-3/4 Inch Diameter x 14 Inch Height • Tank Material Glass Lined • Tank Capacity 2.5 Gallon • Tank Warranty 6 Year Limited • Efficiency Rating Standby Heat Loss • Inclusions/Features Premium Grade Anode Rod, Single Resistored Stainless Steel Heating Element, Over-Temperature Protector, Automatic Thermostat, Wall Bracket, Electric Junction Box, Space-Saving Isolated Tank Design, Corrosion Resistant Enhanced Flow 1/4 Turn Brass Drain Valve, Power Cord • Applicable Standard ANSI Z21.22, ANSI/NFPA 70, ASHRAE 90A-80, UL 174/786H, AHRI, ICC, DOE, HUD, NAECA • Lead-Free • Relief Valve Connection Size 3/4 Inch Threaded • Water Temperature 125 Deg F
• Lead-Free • Relief Valve Connection Size 3/4 Inch Threaded • Water Temperature 125 Deg F
