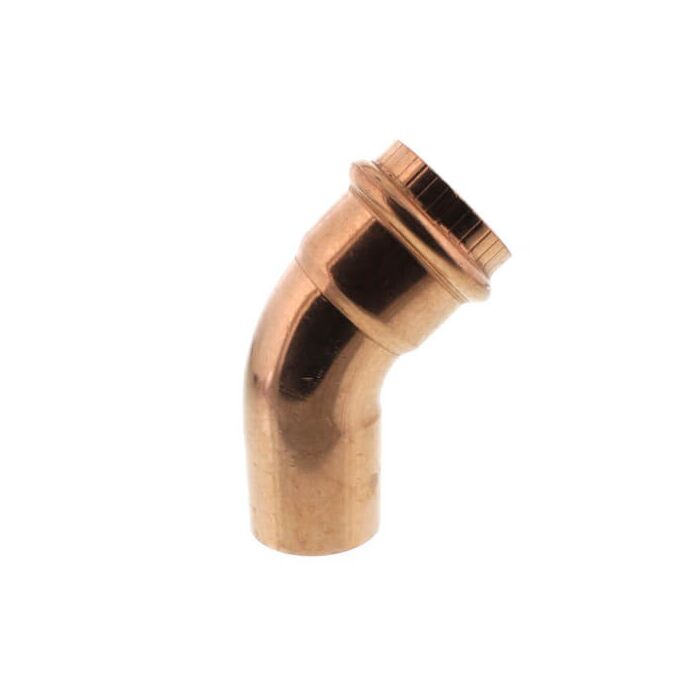

1-1/4" x 1-1/4", Press x FTG, 15 PSI WSP, 200 PSI CWP, Wrot Copper, Straight, 45D Street Elbow
Product Description
More Information
Press-Type End Connections Eliminate the Need for Soldering, Reducing Labor and Material Costs and Eliminating the Fire Hazard Associated with the Process; Press-To-Connect Connections are Designed for Installation onto ASTM B88 Types K, L and M Hard-Drawn Copper Tubing
Elbow Fitting; Type Street; Angle 45 Degree; Size A 1-1/4 Inch; Size B 1-1/4 Inch; End Connection Press x Male Soldered; Material C12200/C11000 Copper Alloy; Material Specification ASTM B75/B152; Process Wrot; Pressure Rating 200 PSI CWP, 15 PSI SWP; Temperature Rating 0 to 250 Deg F; Application Potable Water, Plumbing; Applicable Standard ANSI/ASME B16.51/B16.22/B1.20.1, NSF/ANSI 61, UPC/IAPMO, CSA, CUPC; Lead-Free; Includes EPDM O-Ring, Stainless Steel Grip Ring, Acetal Resin Guide Ring
