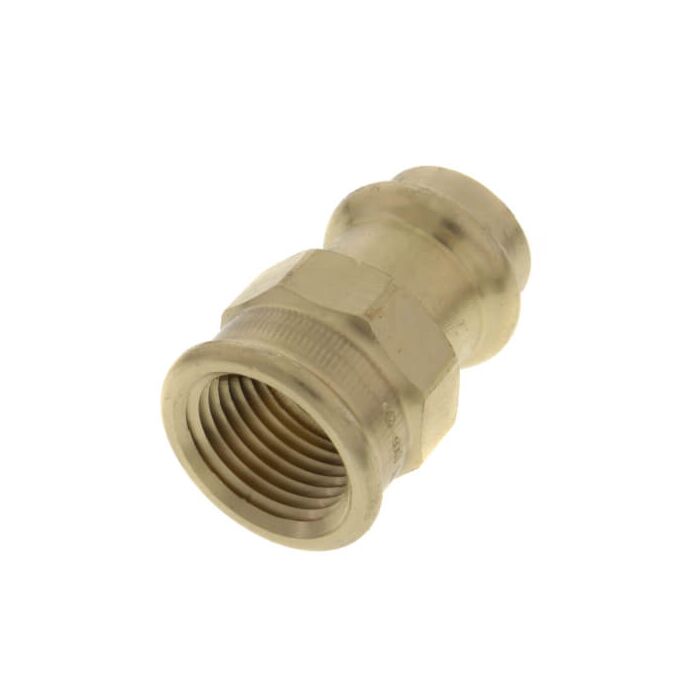

1 PXF PRO PRESS X FEMALE DIELECTRIC UNION

SKU

PP100DU

UPC:

662545136370

Available In stock

Only 20 Left

1 PXF PRO PRESS X FEMALE DIELECTRIC UNION

Product Description

More Information
Made to Reduce Galvanic Corrosion Where Two Dissimilar Metals are Joined • Self-Aligning, Non-Conductive Elastomer Gasket and Thermoplastic Insert Create a Positive Seal and Complete Isolation Between the Tubing and Piping End • Manufactured for Installation onto ASTM B88 Types K, L and M Hard-Drawn Copper Tubing • Lead-Free""	1 PXF PRO PRESS X FEMALE DIELECTRIC UNION	• Lead-Free

Specifications
California Proposition 65 Warning	Yes
End Connection	Female Threaded x Press
Individual Item Weight	0.720 Pound
Manufacturer	Legend Valve
Manufacturer Name	LEGEND VALVE
Manufacturer Part Number	301-105PNL
Material	AISI 1008A Carbon Steel (Union Nut/Adapter), EPDM Rubber (Press Socket O-Ring/Adapter O-Ring/Gasket), MG-0133N Nyloy (Insert Insulator), UNS C46500 Brass (Press Adapter/Adapter Baseplate)
Material Specification	ASTM B88
Package/Shipping Height	11.300 Inch
Package/Shipping Length	13.700 Inch
Package/Shipping Quantity	12 per Carton, 72 per Case
Package/Shipping Width	8.800 Inch
Pressure Rating	200 PSI CWP Non-Shock, 30 PSI SWP
Process	Forged
Series/Model	P-571NL
Size (Inches)	1"
Size A	1 Inch
Size B	1 Inch
Temperature Rating	275 Deg F (Continuous), 300 Deg F (Intermittent)
Type	Straight
UNSPSC	40174900
UPC	662545136370

More Information
Manufacturer Catalog Document	Manufacturer Specification/Technical Document
