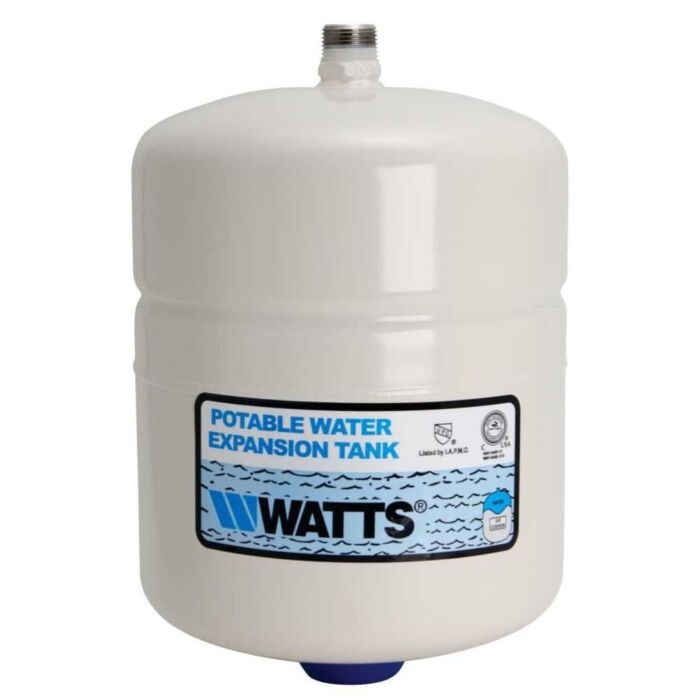

8" x 11", 3/4" MPT, 2.1 Gallon, 150 PSI, Rugged Flexible Butyl Rubber Diaphragm, Lead-Free, Polypropylene Lined Drawn Steel, Field Adjustable Pre-Charged, In-Line, Freestanding, Portable, Water Heater Expansion Tank
Product Description
More Information
Prevents Over-Pressure Caused by Thermal Expansion; Lead-Free
Water Heater Expansion Tank; Type Pipe Mount, Vertical/Horizontal; Inlet/Outlet Connection 3/4 Inch Male Threaded; Tank Material Steel; Tank Inner Lining Polypropylene; Temperature Rating 200 Deg F; Pressure Rating 150 PSI; Tank Dimensions 8 Inch Diameter x 11 Inch Height; Tank Capacity 2.1 Gallon; Diaphragm Type Butyl Rubber; Air Charge Type Field Adjustable Pre-Charged; Air Charge Capacity 20 PSI; Inclusions/Features Air Valve; Application Potable; Air Precharge 20 PSI; Tank Acceptance 1.48 Gallon at 20 PSI; Color Almond; Bladder Material Butyl
This potable water expansion tank is used on gas, oil, or electric, direct-fired, residential water heater and hot water storage tank applications to absorb the increased volume of water created by thermal expansion. It also maintains balanced pressure throughout the water supply system by keeping system pressure below the T and P relief valve setting. This field-adjustable steel tank is air pre-charged at 20 psi, volume 2.1 gallons, designed with an FDA-approved polypropylene liner and Butyl rubber diaphragm, copper-lined steel, and 3/4 inch male inlet connection. An expansion membrane prevents air-to-water contact in the tank ensuring a long system life. IAPMO listed and ANSI/NSF 61 certified. The maximum pressure is 150 psi (10 bar).
