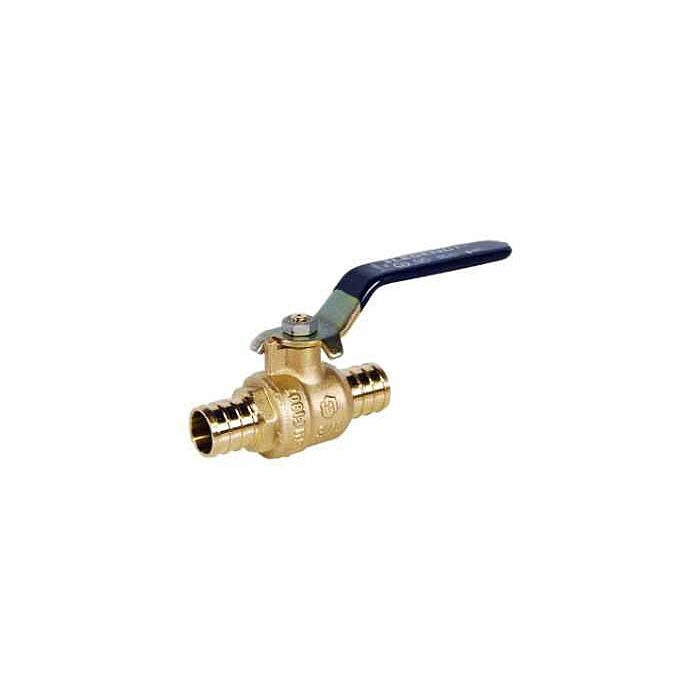

Ball Valve
1-1/2" x 1-1/2", F1807 PEX x F1807 PEX, 400 PSI Non-Shock CWP, Lead-Free, DZR Forged Brass Ball/Body, Lever Handle, Ball Valve
Product Description
Specifications
| Actuation Type | Lever Handle |
|---|---|
| Ball Material | UNS C46500 Chrome Plated Forged Brass Alloy |
| Body Material | UNS C46500 DZR Forged Brass Alloy |
| California Proposition 65 Warning | Yes |
| End Connection | F1807 PEX x F1807 PEX |
| End To End Distance | 4.11 Inch |
| Handle Material | ASME SA6 SA283 Grade C Zinc Plated Steel |
| Individual Item Weight | 1.120 Pound |
| Manufacturer | Legend Valve |
| Manufacturer Name | Legend Valve |
| Manufacturer Part Number | 101-573NL |
| Nominal Size | 1-1/2 Inch x 1-1/2 Inch |
| Package/Shipping Height | 8.400 Inch |
| Package/Shipping Length | 10.100 Inch |
| Package/Shipping Quantity | 16 per Case, 4 per Carton |
| Package/Shipping Width | 9.400 Inch |
| Pressure Rating | 400 PSI (CWP) |
| Seal Material | EPDM Rubber O-Ring |
| Seat Material | PTFE |
| Series/Model | T-2006NL |
| Stem Material | UNS C46500 DZR Forged Brass Alloy |
| Temperature Rating | 250 Deg F |
| UNSPSC | 40141607 |
| UPC | 662545114965 |
