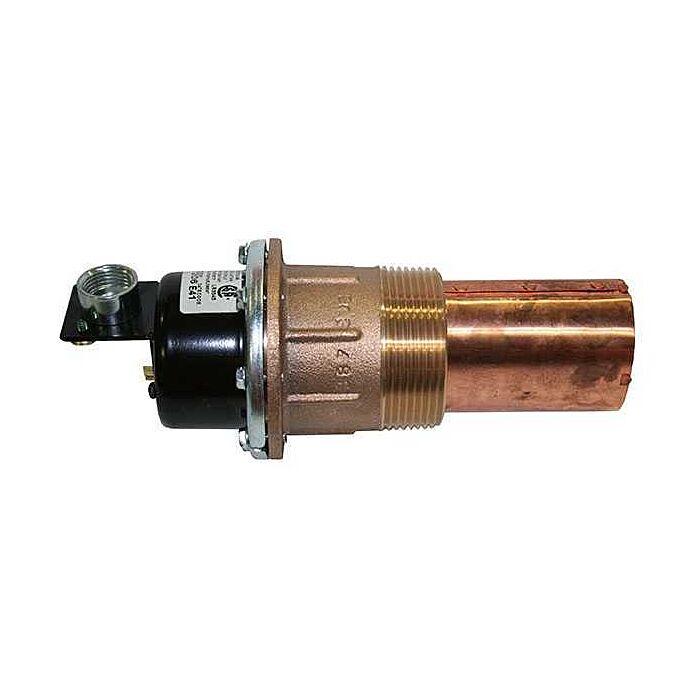

#69 LOW WATER CUT OFF MCDONELL

SKU

MCD153900

UPC:

751875003213

Call for Availability

2-1/2" NPT, 120/240 VAC, 125 VA, 20 PSI, Steam/Water Media, Mechanical, Built-In, Boiler Low Water Cut-Off with 4-1/8" Insertion Length

Product Description

More Information
Packless Bellows; Adjustable BX Outlet for Easy Installation; Dual Precision Switches for Dependable Operation of the Low Water Cut-Off and an Alarm or Electric Water Feeder Millivolt Circuits	Boiler Low Water Cut-Off; Item Low Water Cut-Off; Type Built-In; Port Connection 2-1/2 Inch Threaded; Actuation Type Mechanical; Overall Dimensions 9-1/2 Inch Length x 4-1/8 Inch Width; Current Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC (Full Load), 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC (Locked Rotor); Input Supply Rating 120/240 Volt AC; Pressure Rating 20 PSI (Steam); Media Handled Steam, Water; Inclusions/Features 4-1/8 Inch Insertion Length; Application Residential, Commercial; Applicable Standard UL, CSA, FM; Power Rating 125 Volt Amp

Specifications
Actuation Type	Mechanical
Current Rating	7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC (Full Load), 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC (Locked Rotor), 1 Amp at 120 Volt AC/1/2 Amp at 240 Volt AC (Alarm Circuit)
Individual Item Weight	3.700 Pound
Input Supply Rating	120/240 Volt AC
Manufacturer	ITT Controls B.V. / Xylem Inc. (McDonnell & Miller)
Manufacturer Name	ITT Controls B.V. / Xylem Inc. (McDonnell & Miller)
Manufacturer Part Number	153900
Media Handled	Steam, Water
Overall Dimensions	9-1/2 Inch Length x 4-1/8 Inch Width
Port Connection	2-1/2 Inch Threaded
Pressure Rating	20 PSI (Steam)
UNSPSC	40101851
UPC	751875003213

More Information
Manufacturer Catalog Document	Manufacturer Installation/Operator Document
