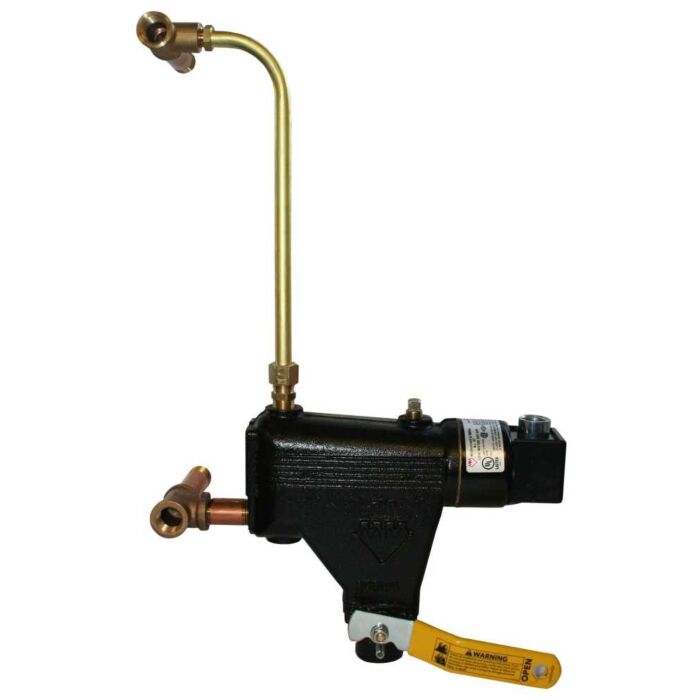

1/4" x 3/8" x 3/4", NPT x NPT x NPT, 120/240 VAC, 125 VA, 7.4/3.7 A Full Load, 44.4/22.2 A Locked Rotor, 20 PSI Stem, Lever Operated, Float, Low Water Cut-Off for Steam Boiler and Millivolt Service
Product Description
More Information
Quick Hook-up Fittings Provided; Lever-Operated, Full Port Ball Valve for Easy Blow Down; Adjustable BX Outlet for Easy Installation; Dual Precision Switches for Dependable Operation of the Low Water Cut-Off and Alarm or Electric Water Feeder; Low Voltage Switches for Self-Generating Millivolt Circuits; Manual Reset Switch; Large Float Chamber; Maximum Steam Pressure
Stem Boiler Low Water Cut-Off; Item Low Water Cut-Off; Type Float; Port Connection 1/4 Inch Threaded x 3/8 Inch Threaded x 3/4 Inch Threaded; Actuation Type Mechanical/Lever; Overall Dimensions 9-23/32 Inch Length; Current Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC (Full Load); Input Supply Rating 120/240 Volt AC, 125 Volt Amp; Pressure Rating 20 PSI (Steam); Media Handled Steam; Inclusions/Features Full Port Ball Valve, Quick Hook-Up, Adjustable BX Outlet, Dual Precision Switch, Manual Reset Switch; Application Commercial, Residential; Applicable Standard FM, UL, CSA; For Millivolt Service
Specifications
Specifications
Actuation Type
Mechanical/Lever
Current Rating
7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC (Full Load)
Individual Item Weight
10.000 Pound
Input Supply Rating
120/240 Volt AC, 125 Volt Amp
Manufacturer
ITT Controls B.V. / Xylem Inc. (McDonnell & Miller)
Manufacturer Name
ITT Controls B.V. / Xylem Inc. (McDonnell & Miller)
Manufacturer Part Number
149600
Media Handled
Steam
Overall Dimensions
9-23/32 Inch Length
Port Connection
1/4 Inch Threaded x 3/8 Inch Threaded x 3/4 Inch Threaded
