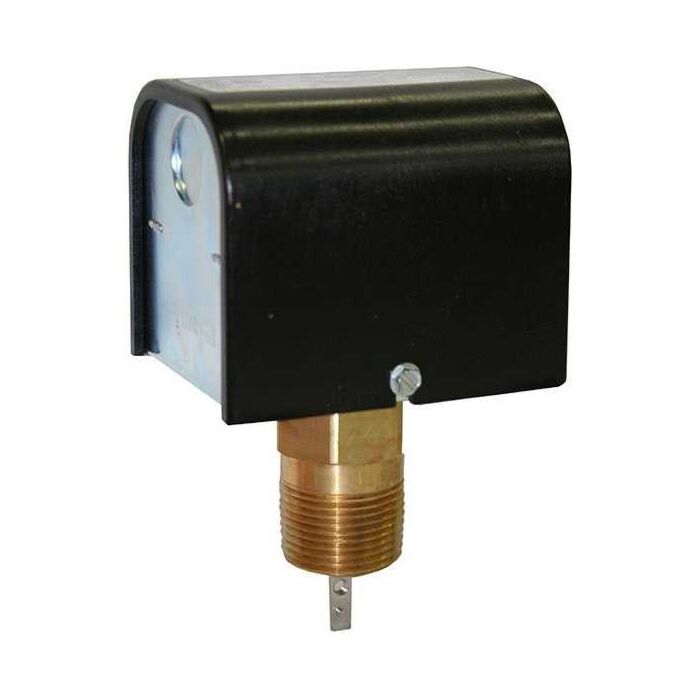

1", NPT, 120/240 VAC 50/60 Hz, 7.4 A, 6 to 10.2 GPM Flow, 3.6 to 9.2 GPM No Flow, 160 PSI, NEMA 4X, Paddle, Universal, General Purpose Liquid Flow Switch
Product Description
More Information
Universal Design Serves the Widest Variety of Application; For Starting or Stopping Electrically Operated Equipment Such as Signal Light, Alarm, Motor, Automatic Burner, Metering Devices and Other; Two Electrical Knock-Out Allows Connection from Either End; Sensitivity Adjusting Screw Makes Flow Adjustment Easy; Single Pole, Double Throw Snap Switch; Hardened Stainless Steel Bearings Minimize Friction; Sealed Monel Bellows; Two SPDT Switches to Make or Break Two Separate Circuit; Material of Construction Suitable for Corrosive Liquid
General Purpose Liquid Flow Switch; Type Paddle, Universal; Nominal Size 1 Inch; End Connection Threaded; Contact Type (2) SPDT; Enclosure Type NEMA 4X; Current Rating 7.4 Amp at 120 Volt AC (FLA), 3.7 Amp at 240 Volt AC (FLA); Input Supply Rating 120/240 Volt AC 50/60 Hertz; Flow Rate 6 to 10.2 GPM (Flow), 3.6 to 9.2 GPM (No Flow); Flow Set Point 27 GPM; Temperature Rating 32 to 300 Deg F; Pressure Rating 160 PSI; Inclusions/Features Sensitivity Adjustable Screw, (2) Electrical Knock-Out, Hardened Stainless Steel Bearing, Sealed Monel Bellow; Applicable Standard UL (Canada and US)
Specifications
Specifications
Contact Type
(2) SPDT Snap Action
Current Rating
7.4 Amp at 120 Volt AC (Full Load), 3.7 Amp at 240 Volt AC (Locked Rotor)
End Connection
Threaded
Flow Rate
6 to 10.2 GPM (Flow), 3.6 to 9.2 GPM (No Flow)
Flow Set Point
27 GPM
Individual Item Weight
1.900 Pound
Input Supply Rating
120 to 240 Volt AC 50/60 Hertz
Manufacturer
ITT Controls B.V. / Xylem Inc. (McDonnell & Miller)
Manufacturer Name
ITT Controls B.V. / Xylem Inc. (McDonnell & Miller)
