4-5/16" x 3-1/8" x 6-1/8", 120 VAC, 60 Hz, 77 to 150 Deg F, Gray Enamel, SPST, Aquastat Relay
Product Description
More Information
High Limit Opens Burner Circuit Only; Select Models Include Transformer and Accessory Terminals for Adding a Remote Low Limit Controller; Case for Horizontal or Vertical Mounting; Requires a 24 VAC Thermostat with Heat Anticipator Set at 0.2 Amp
Aquastat Relay; Voltage Rating 120 Volt AC; Minimum AC Voltage Rating 120 Volt AC; Frequency Rating 60 Hertz; Process Connection Quick-Connect/Screw; Operating Temperature 120 to 240 Deg F (High Limit), 77 to 150 Deg F (Ambient); Humidity 0 to 95 Percent RH (Non-Condensing); Size 4-5/16 Inch Width x 3-1/8 Inch Depth x 6-1/8 Inch Height (Vertical); Mounting Horizontal/Vertical; Application High Limit, Burner, Circulator Motor; Approval UL; Current Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC (FLA), 44.4 Amp at 120 Volt AC/22.7 Amp at 240 Volt AC (LRA), 0.25 Amp at 0.25 to 12 Volt DC; Differential Temperature Rating 150 Deg F; Operating Pressure Rating 255 PSI (Immersion Well); Switch Type SPST; Capillary Tube Length 4-1/2 Inch; Electrical Connection Type Quick-Connect/Screw; Insulation Depth 1-1/2 to 3 Inch; Finish Gray Enamel

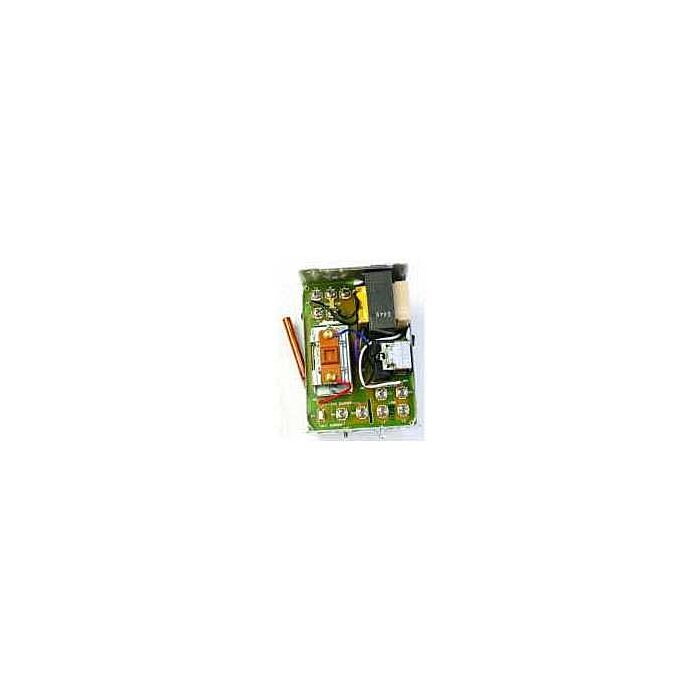

The L8148 Aquastat® Relays are immersion type hydronic controllers that combine high limit protection with switching relay control of burner and circulator motors.
Aquastat®
Specifications
Specifications
Approval
UL, CSA
Frequency Rating
50/60 Hertz
Humidity
0 to 95 Percent RH (Non-Condensing)
Manufacturer
Honeywell International Inc. (Resideo Technologies Inc.)
Manufacturer Name
Honeywell International Inc. (Resideo Technologies Inc.)
Manufacturer Part Number
L8148J1009/U
Minimum Ac Voltage Rating
120
Mounting
Horizontal/Vertical
Operating Temperature
120 to 240 Deg F (High Limit)
Series/Model
L8148
Size
4-5/16 Inch Width x 3-1/8 Inch Depth x 6-1/8 Inch Height
