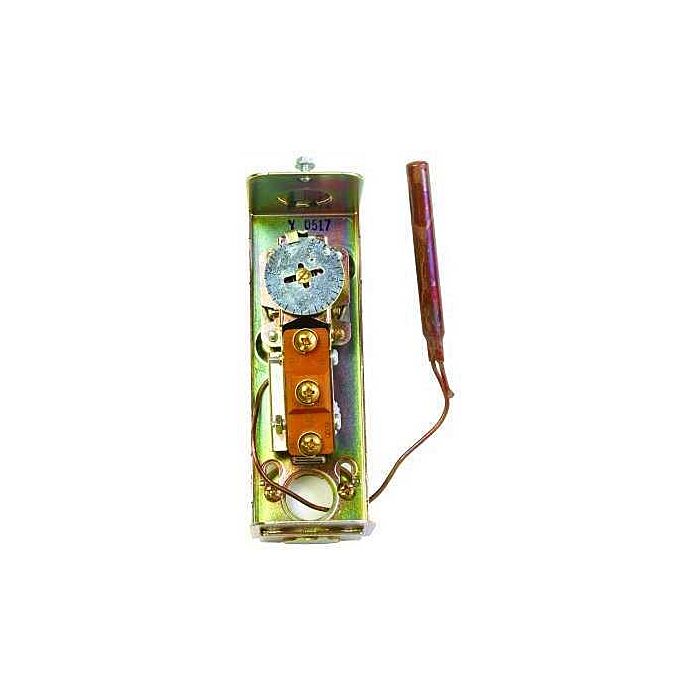

3" Capillary, 3/8" x 2-7/8" Copper Bulb, 8 A at 120 VAC/5.1 A at 240 VAC FLA, 100 to 240 Deg F, SPST, Direct Horizontal/Vertical Well Immersion, Temperature Controller with Heat Conductive Compound
Product Description
More Information
Totally Enclosed Micro Switch Snap-Acting Switches Operate on Temperature Rise to Set Point; Visible Control Point Scale and External Adjustment Screw Permit Easy Setting; Direct or Well Immersion of the Sensing Element; Horizontal or Vertical Insertion of the Sensing Element; Remote Bulb Model May be Used to Sense Air Temperature in Ducts and in Outside Air Sensing Application
Temperature Controller; Type 3/8 Inch Diameter x 2-7/8 Inch Length Copper Bulb, 3 Inch Length Capillary, Direct Horizontal/Vertical Well Immersion, High/Low Limit, Circulator Control; Temperature Range 100 to 240 Deg F; Maximum Temperature Rating 150 Deg F; Contact Rating 8 Amp at 120 Volt AC/5.1 Amp at 240 Volt AC (Full Load), 48 Amp at 120 Volt AC/30.6 Amp at 240 Volt AC (Locked Rotor), 0.25 Amp at 0.25 to 12 Volt DC (Millivolt); Contact Configuration SPDT; Connection Type 3/4 Inch Conduit, Screw Terminal; Application Boiler, Storage Tank; Approval UL, CSA; Overall Dimension 2 Inch Width x 2-1/8 Inch Depth x 5-5/8 Inch Height; Mounting Type Horizontal; Differential Temperature Rating 5 to 30 Deg F (Adjustable); Includes Heat Conductive Compound
Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. Honeywell's L4006 are used in applications that utilize the existing wells.
Aquastat®
Specifications
Specifications
Approval
UL, CSA
Contact Configuration
SPDT
Contact Rating
8 Amp at 120 Volt AC/5.1 Amp at 240 Volt AC (Full Load), 48 Amp at 120 Volt AC/30.6 Amp at 240 Volt AC (Locked Rotor), 0.25 Amp at 0.25 to 12 Volt DC (Millivolt)
Manufacturer
Honeywell International Inc. (Resideo Technologies Inc.)
Manufacturer Name
Honeywell International Inc. (Resideo Technologies Inc.)
