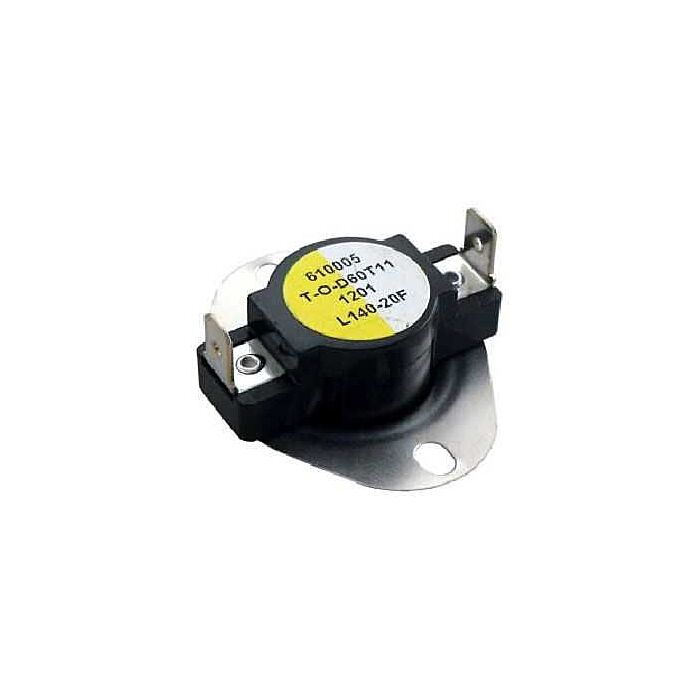

THERMOSTAT L140-20F

SKU

L140

UPC:

687152020492

Call for Availability

120/240 VAC, 10/5 FLA, 60/30 LRA, 25 A Resistive, 125 VA Pilot Duty, 140 Deg F Open, 120 Deg F Close, SPST, Snap Action, Open on Rise, Thermostat

Product Description

More Information
Close When Temperature Differential is Reached; Welded Construction for Integrity of Current Carrying Components; 1/4 Inch Quick-Disconnect Terminals; 3/4 Inch Bimetal Disc Temperature Controls Offers Proven Reliability in a Versatile, Cost-Effective Design	Thermostat; Voltage Rating 120/240 Volt AC; Current Rating 10/5 Amp (Full Load), 60/30 Amp (Locked Rotor), 25 Amp (Resistive) at 120/240 Volt AC; Power Rating 125 Volt Amp at 120/240 Volt AC (Pilot Duty); Switch Type SPST, Snap-Action, Open on Rise; Temperature Rating 140 Deg F (Open), 120 Deg F (Close), 20 Deg F (Differential); Size 1.633 Inch Width x 2 Inch Height; Approval UL, CSA; Disc Type 3/4 Inch Bi-Metal; Terminal Type 1/4 Inch Quick-Connect; Style 60T11; Mounting Type Air Stream; Application Home Laundry Dryer, Fan and Limit	The L-Series style temperature controls have a bi-metal disc that senses the temperature and quickly separates the contacts. This results in long life characteristics at loads up to 25 amps at 240 VAC. L-Series switches are single pole single throw 60T11 style (3/4") with auto-reset. These switches are designed to open on temperature rise and are enclosed and provides greater protection than the exposed construction.	THERMODISC®

Specifications
Approval	UL, CSA
California Proposition 65 Warning	Yes
Current Rating	14 Amp at 120 Volt AC, 10 Amp at 240 Volt AC
Manufacturer	Supco
Manufacturer Name	Supco
Manufacturer Part Number	L140
Power Rating	125 Volt Amp at 120/240 Volt AC (Pilot Duty)
Size	1.633 Inch Width x 2 Inch Height
Switch Type	SPST, Snap-Action
Temperature Rating	-40 to 350 Deg F (Ambient), 140 Deg F (Open), 120 Deg F (Close), 20 Deg F (Differential)
UNSPSC	41112209
UPC	687152020492
Voltage Rating	120/240 Volt AC
