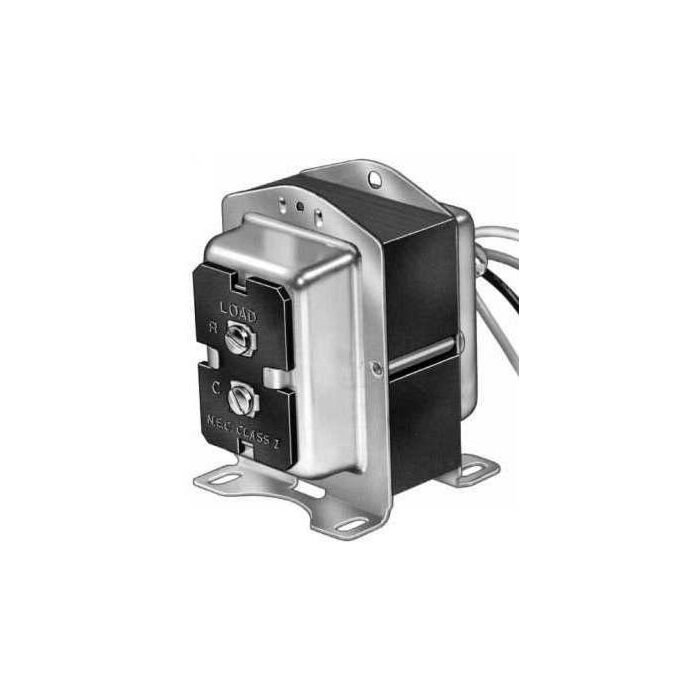

120/208/240 VAC Primary, 27.5 VAC Secondary, 60 Hz, 50 VA, 9" Black/White/Red/Orange Lead Wire Primary/2-Screw Terminal Secondary, Metallic, Foot/Conduit/Plate Mount, General Purpose Transformer
Product Description
More Information
Color-Coded Lead Wires for Primary Connections and Screw Terminals for Secondary Connections; Models with Stripped Lead Wires, Lead Wires with Variety of Terminals or Special Terminations as Required on Both Primary and Secondary; Mounting Include Clamp Mounting on Outlet Box Knockout, Plate Mounting, Foot Mounting, Panel Mounting, Conduit/Panel and a Combination
General Purpose Transformer; Primary Voltage 120/208/240 Volt AC; Secondary Voltage 27.5 Volt AC (Open Circuit); Frequency Rating 60 Hertz; Power Rating 50 Volt Amp; Terminal Type 9 Inch Black/White/Red/Orange Lead Wire (Primary), (2) Screw Terminal (Secondary); Temperature Rise -20 to 105 Deg F; Mounting Foot, Conduit, Plate; Size 3-3/16 Inch Width x 1-3/4 Inch Depth x 1-11/16 Inch Height; Approval UL 1585, CSA; Applicable Standard NEC; Voltage Rating 24 Volt AC (Output); Color Metallic (Body); Includes Clamp, Mounting Plate, Mounting Feet, Metal End Bell, 1/4 Inch Male Quick-Connector Color Coded Lead Wire for Primary and Secondary Connection; Application Heating and Cooling System
Specifications
Specifications
Approval
UL 1585, CSA
Frequency Rating
60 Hertz
Manufacturer
Honeywell International Inc. (Resideo Technologies Inc.)
Manufacturer Name
Honeywell International Inc. (Resideo Technologies Inc.)
Manufacturer Part Number
AT150A1007/U
Mounting
Foot/Plate Mounted on 2 Inch x 4 Inch or 4 Inch x 4 Inch Outlet Box/Clamp Mounted Using Outlet Box Knockout/Panel
Power Rating
50 Volt Amp
Primary Voltage
120/208/240 Volt AC
Secondary Voltage
27.5 Volt AC
Series/Model
AT150A
Size
3-3/16 Inch Width x 1-3/4 Inch Depth x 1-11/16 Inch Height
