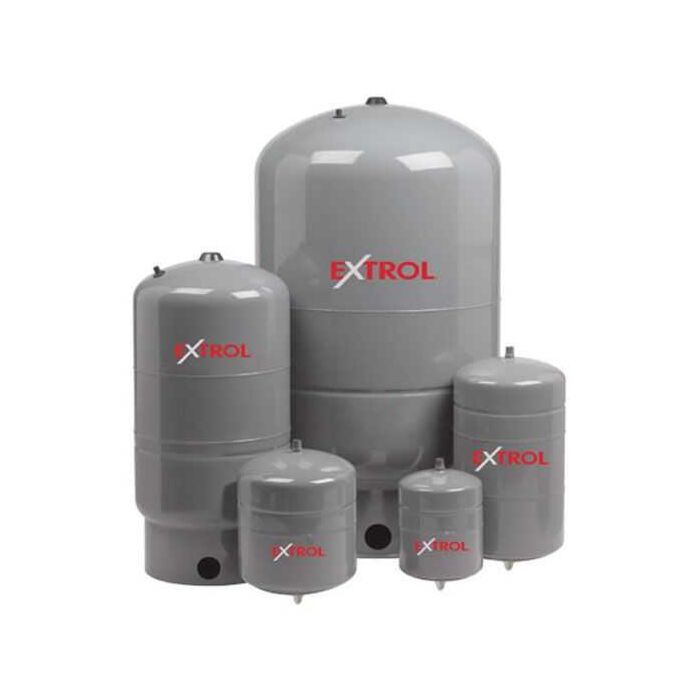

AMTROL EX 30 102-1 EXTROL INLINE BOILDER SYSTEM EXPANSION TANK
Call for Availability
1/2" MPT, 100 PSIG, 4.4 Gallon, Lead-Free, Urethane Topcoat, Steel Shell, In-Line, Hydronic Expansion Tank
Product Description
Specifications
| Air Charge Capacity | 12 PSIG |
|---|---|
| Air Charge Type | Factory Pre-Charged |
| Diaphragm Type | Thick Heavy Duty Butyl/EPDM |
| Inlet Outlet Connection | 1/2 Inch Male Threaded x 1/2 Inch Male Threaded |
| Manufacturer | Worthington Industries, Inc. (Amtrol Inc.) |
| Manufacturer Name | Worthington Industries, Inc. (Amtrol Inc.) |
| Manufacturer Part Number | EX-30 |
| Package/Shipping Weight | 9.000 Pound |
| Pressure Rating | 100 PSIG |
| Series/Model | EX |
| Tank Capacity | 4.4 Gallon |
| Tank Dimensions | 11 Inch Diameter x 15 Inch Height |
| Tank Material | Steel (Shell), Welded Steel (System Connection) |
| Tank Warranty | 7 Year |
| Temperature Rating | 240 Deg F |
| UNSPSC | 24111807 |
| UPC | 642031113061 |
