Ball Valve
Call for Availability

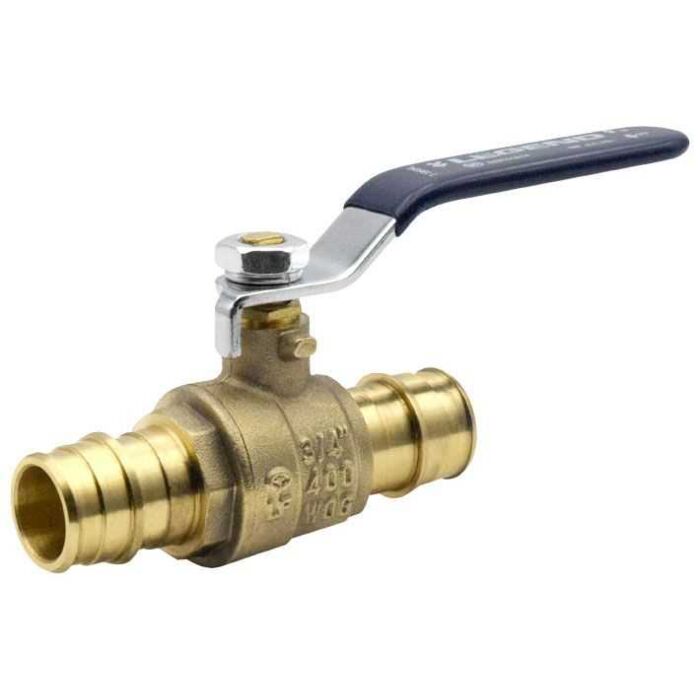

3/4" x 3/4", Cold Expansion PEX x Cold Expansion PEX, 400 PSI CWP, Lead-Free, 304 Stainless Steel Ball, DZR Forged Brass Body, Ball Valve
Product Description
Specifications
| Actuation Type | Lever Handle |
|---|---|
| Ball Material | AISI 304 Stainless Steel |
| Body Material | UNS C46500 DZR Forged Brass Alloy |
| Connection Method | Crimp |
| End Connection | Cold Expansion PEX x Cold Expansion PEX |
| End To End Distance | 3.31 Inch |
| Handle Material | Zinc Plated Steel |
| Handle Style | Lever |
| Individual Item Weight | 0.420 Pound |
| Lead Free | Yes |
| Manufacturer | Legend Valve |
| Manufacturer Name | Legend Valve |
| Manufacturer Part Number | 101-544NL |
| Nominal Size | 3/4 Inch x 3/4 Inch |
| Package/Shipping Height | 3.500 Inch |
| Package/Shipping Length | 8.000 Inch |
| Package/Shipping Quantity | 10 per Carton |
| Package/Shipping Width | 6.500 Inch |
| Port Type | Full |
| Pressure Rating | 400 PSI (CWP) |
| Seal Material | EPDM Stem O-Ring |
| Seat Material | PTFE |
| Series/Model | T-1960NL, 101 |
| Size (Inches) | 3/4" |
| Stem Material | UNS C36000 Forged Brass Alloy |
| UNSPSC | 40141607 |
| UPC | 662545114538 |
| Valve Material | Brass |
