One System for All Rod Hanging Applications in Steel, Wood and Concrete; Ease and Speed of Overhead Installation; Lower In-Place Cost, When Compared to Beam Clamps, Lag Bolts and Dropins; Concrete Vertigo can be Installed with an Adjustable Torque, Battery Powered Screw Gun or Hammer Drill; a Fast, Safe and User Friendly Way to Hang Rod Overhead
Mechanical Anchor; Type Self-Drilling Screw Style, Vertical Hanger; Anchor Size 3/8 Inch; Screw Size 1/4 Inch; Screw Length 1-1/2 Inch; Drill Size 1/4 Inch; Thread Length 1-3/8 Inch; Embed Depth 1-1/2 Inch; Material Carbon Steel; Material Specification ASTM B633, SC1, 10B21; Process Case Hardened; Finish Zinc Plated; Load Rating 1475 Pound (FM Test); Pipe Size 4 Inch; Mounting Type Direction Vertical; Application Concrete, Hanging Pipe and Sprinkler System, Lighting System and Overhead Utility, Suspended Ceiling, Suspending Conduit and Cable Tray, HVAC Ductwork and Strut Channel, Mounting Security Equipment; Approval FM; Thread Style Wedge-Bolt OT

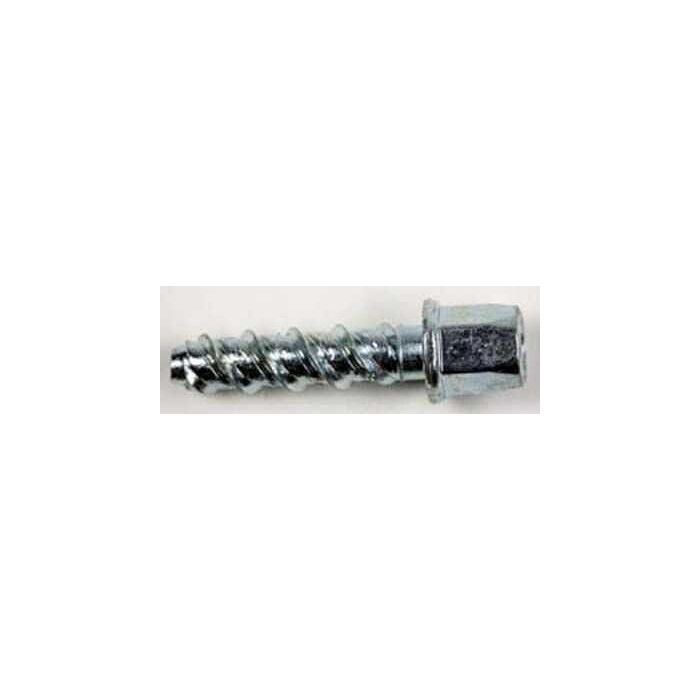

Vertigo is an all steel threaded fastening system for suspending steel threaded rod vertically overhead in pipe hanging, fire protection, electrical conduit and cable-tray applications. Vertigo are available in three versions which can be installed in a variety of base materials including steel purlins, bar joists and beams, wood frame columns and beams, as well as concrete ceilings, beams and columns.
