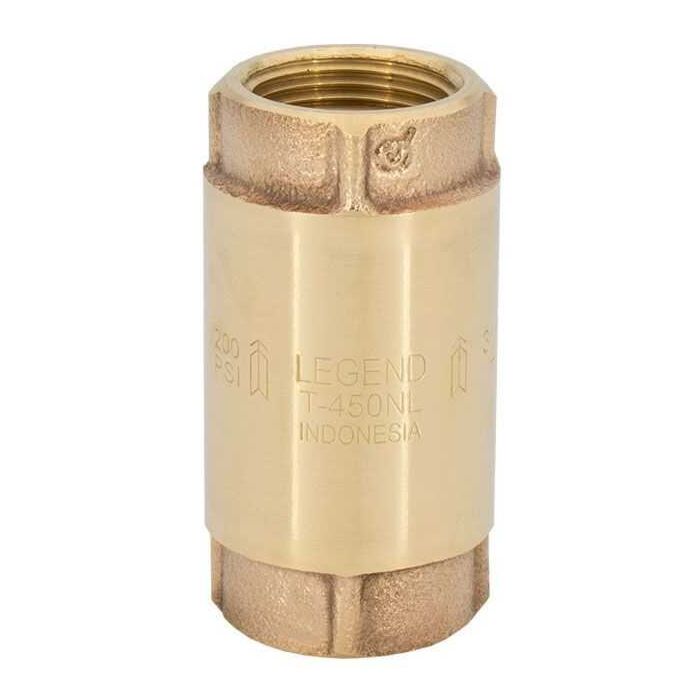

1-1/4" x 1-1/4", FPT x FPT, 200 PSI CWP, Lead-Free, Cast Bronze Body, In-Line, Spring Loaded, Check Valve
Product Description
More Information
Durable, Heavy Wall Cast Bronze Design is Ideal for Water Well Applications; Spring Loaded Stem-Disc and Elastomer O-Ring Seal are a Silent Closure Design; 1/2 Pound Cracking Pressure is Ideal for all Types of Well Pumps; Fully Guided Stem Minimizes over Travel, Reducing the Chance of Piston Failure; Can be Installed in the Vertical or Horizontal Position; Lead-Free
Check Valve; Type Spring Loaded, In-Line; Nominal Size 1-1/4 Inch; End Connection Female Threaded x Female Threaded; End to End Distance 3.62 Inch; Body Material UNS C87850 Cast Bronze Alloy; Disc Material UNS C87850 Cast Bronze Alloy; Spring Material AISI 304 Stainless Steel; Seal Material Buna-N Rubber; Temperature Rating 200 Deg F; Pressure Rating 200 PSI CWP; Inclusions/Features Spring Loaded Stem Disc, Stainless Steel Stem Nut/Spring Cup, Polyacetal Resin Stem Guide; Application Potable Water, Water Well, Plumbing, Commercial, Industrial, Hydronics; Applicable Standard NSF/ANSI 372, ANSI/ASME B1.20.1, ISO 9002; Lead-Free; Cracking Pressure 1/2 PSI
