Manufactured from Legend's Proprietary Formulation, Which Dramatically Increases Flexibility, While Maintaining High Strength and Durability; the Externally-Extruded EVOH Oxygen Barrier Reduces Oxygen Molecule Permeation into the Water, Virtually Eliminating Corrosion within the System; Packaged in Sunlight-Blocking Containers or Wrap, to Protect the Tubing from UV-Light Oxidation; Numerical Foot Markings Permit Circuit Loop Calculations, Preventing Excess Circuit Loop Lengths

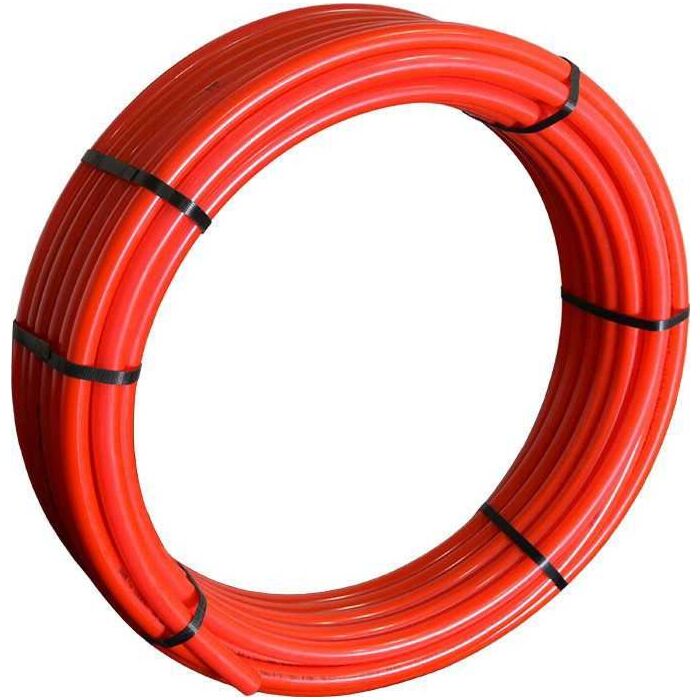

Tubing; Outside Diameter 0.875 Inch; Wall Thickness 0.097 Inch; Length 100 Foot Coil; End Connection PEX x PEX; Material Cross-Linked Polyethylene; Material Specification ASTM F876/F877; Process Extruded; Pressure Rating 160 PSI at 73 Deg F, 100 PSI at 180 Deg F, 80 PSI at 200 Deg F; Color Red; Weight 10 Pound; Application Radiant Heating and Cooling, Geothermal, Snow/Ice Melt System; Applicable Standard CSA B137.5, NSF/ANSI 14, ISO 15875, DIN 4726/16892; Nominal Size 3/4 Inch; Schedule SDR-9; Includes EVOH Oxygen Barrier
LegendFlex®
Specifications
Specifications
End Connection
PEX x PEX
Individual Item Weight
13.000 Pound
Manufacturer
Legend Valve
Manufacturer Name
Legend Valve
Manufacturer Part Number
850-151
Material
PEX
Material Specification
ASTM F876/F877
Outside Diameter
0.875 Inch
Package/Shipping Height
6.000 Inch
Package/Shipping Length
29.000 Inch
Package/Shipping Quantity
1 per Carton
Package/Shipping Width
29.000 Inch
Pressure Rating
160 PSI at 73 Deg F, 100 PSI at 180 Deg F, 80 PSI at 200 Deg F
