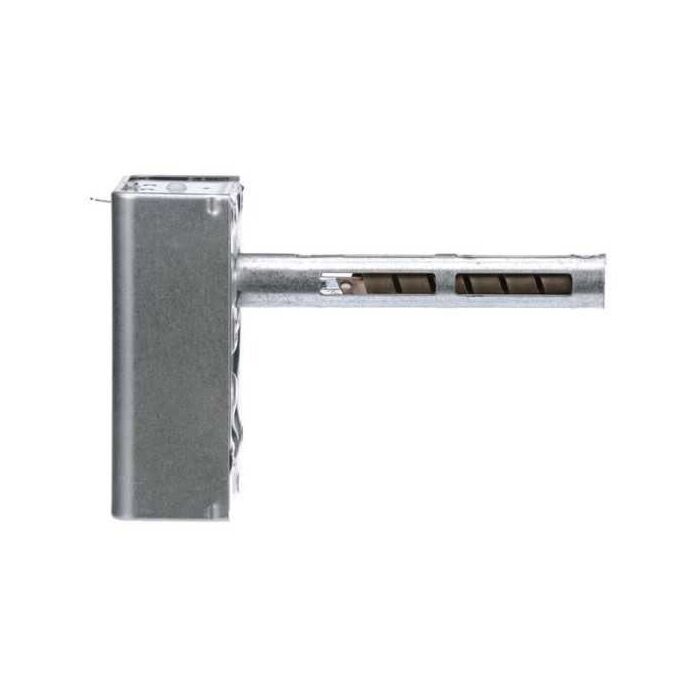

2.9" x 1.6" x 4.3", 50 to 265 Deg F Fan, 100 to 300 Deg F Limit, 5' L Capillary, Fan and Limit Control
Product Description
More Information
For Applications with Narrow Space Limitations; Regulates Fan or Blower Operation and Acts as High Limit Safety Control; Summer Fan Switch for Ventilation without Changing Control Settings has Same Fan and Limit Switch Mechanism; Dial has Individual Pointers for Fan Cut-In and Cut-Out Settings; Removable Solid Copper Jumper Between Fan and Limit Switches; Slotted Mounting Holes for Easy Installation
Fan and Limit Control; Type 5 Foot Length Capillary; Temperature Range 50 to 265 Deg F (Fan), 100 to 300 Deg F (Limit); Contact Rating 5.6 Amp Fan/6 Amp Limit at 24 Volt AC Motor/14 Amp Fan/10 Amp Limit at 120 Volt AC Motor (FLA), 7 Amp Fan/6 Amp Limit at 240 Volt AC Valve and Relay; Approval UL, CUL, CSA; Overall Dimension 2.9 Inch Width x 1.6 Inch Depth x 4.3 Inch Height; Differential Temperature Rating 15 to 25 Deg F; Switch Action Close On Rise (Fan), Open On Rise (Limit)
Specifications
Specifications
Approval
UL, CSA
Contact Configuration
Close on Rise
Contact Rating
14 Amp at 120 Volt AC/7 Amp at 240 Volt AC (Full Load), 5.6 Amp at 24 Volt AC (Valve and Relay)
